The 7MBP150RF060-01 is an IGBT-IPM.
Parametrics
7MBP150RF060-01 absolute maximum ratings: (1)DC bus voltage, VDC: 0 to 900V; (2)DC bus voltage (surge): VDC(surge): 0 to 1000V; (3)DC bus voltage (short operating), VSC: 200 to 800V; (4)Collector-Emitter voltage, VCES: 0 to 1200V; (5)DB Reverse voltage, VR: 1200V max; (6)INV Collector current DC, IC: 150A max; 1ms, ICP: 300A, DC, -IC: 150A max; collector power dissipation, one transistor, Pc: 1040W; (7)DB, Collector current, DC, IC: 50A max; 1ms, ICP: 100A max; Forward current of Diode, DC, IC: 50A max; 1ms, ICP: 100A max; Collector power dissipation One transistor, PC: 400W max; (8)Junction temperature, Tj: 150℃ max; (9)Input voltage of power supply for Pre-Driver, VCC: 0 to 20V; (10)Input signal voltage, Vin: 1mA max; (11)Input signal current, Iin: 1mA; (12)Alarm signal voltage, VALM: 0 to VCC; (13)Alarm signal current, IALM: 15mA; (14)Storage temperature, Tstg: -40 to 125℃; (15)Operating case temperature, Top: -20 to 100℃; (16)Isolating voltage (Case-Terminal), Viso: AC2.5KV; (17)Screw torque Mounting (M5): 3.5Nm; Terminal (M5): 3.5Nm.
Features
7MBP150RF060-01 features: (1)Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2)Low power loss and soft switching; (3)High performance and high reliability IGBT with overheating protection; (4)Higher reliability because of a big decrease in number of parts in built-in control circuit.

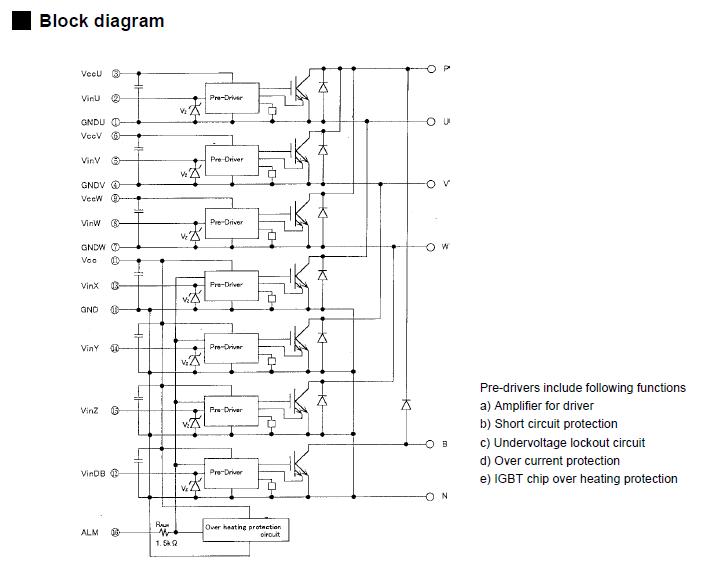

Diagrams
 |
