Product Summary

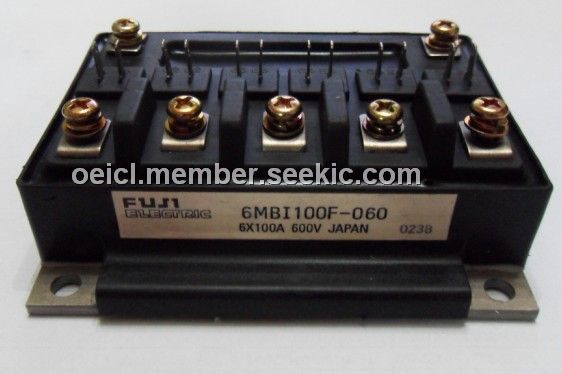

The 6MBI100F-060 is an IGBT module. The applications of the device include inverter for motor drive, AC-DC servo drive amplifier, uninterruptible power supply and industrial machines.
Parametrics
6MBI100F-060 absolute maximum ratings: (1)VCES: 600V; (2)VGES: ±20V; (3)IC: 100A; (4)ICpulse: 200A; (5)-IC: 100A; (6)-ICpulse: 200A; (7)Pc: 360W; (8)Tj: 150℃; (9)Tstg: -40 to 125℃; (10)m: 510g; (11)Visol: 2500V; (12)mounting: 3.5Nm; (13)terminals: 1.7Nm.
Features
6MBI100F-060 features: (1)low saturation voltage; (2)voltage drive; (3)variety of power capacity series.

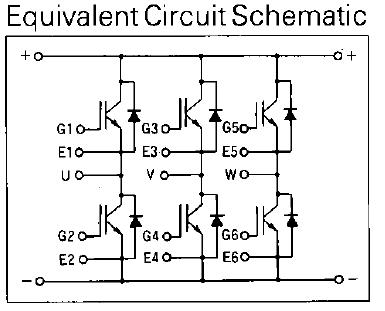

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() 6MBI100F-060 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
