Product Summary

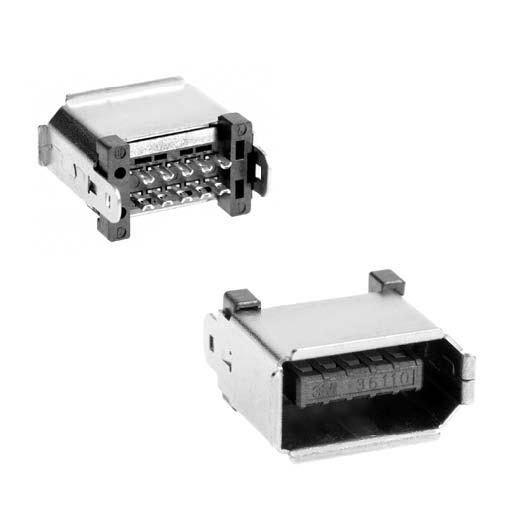

The 36110-3000FD is a 3M Shielded Compact Ribbon (SCR) Connector.
Parametrics
36110-3000FD absolute maximum ratings: (1)Current Rating: 1 A; (2)Voltage Rating: 150 VAC / 200 VDC; (3)Insulation Resistance: > 5 × 108Ω at @ 500 VDC; (4)Withstanding Voltage: 500 VRMS for 1 minute; (5)Temperature Rating: -55℃ to +85℃.
Features
36110-3000FD features: (1)Enables mid-span and extension applications when used in conjunction with the 3M Shielded Compact Ribbon (SCR) Wiremount Receptacle (TS-2227); (2)Polarized to provide proper cable insertion; (3)Robust ribbon style contact for reliable, repetitive plugging; (4)360° shielding for excellent EMI protection; (5)10 contacts can carry signal or power (up to one ampere per pin); (6)Vibration resistant; (7)Solder termination for quick assembly with no dedicated tooling; (8)Accommodates up to 22 AWG wire; (9)See Regulatory Information Appendix (RIA) for chemical compliance information.

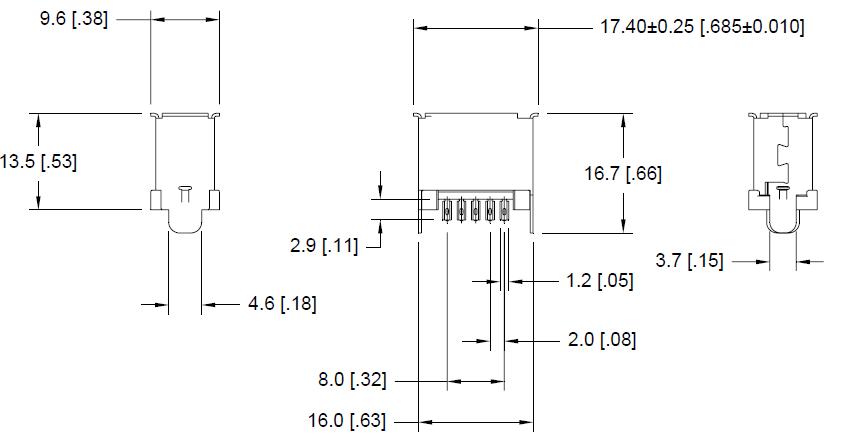

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
36110-3000FD |
3M Electronic Solutions Division |
I/O Connectors SCR PLUG WIREMOUNT SHIELDED |
Data Sheet |
|
|
|||||||||||||
