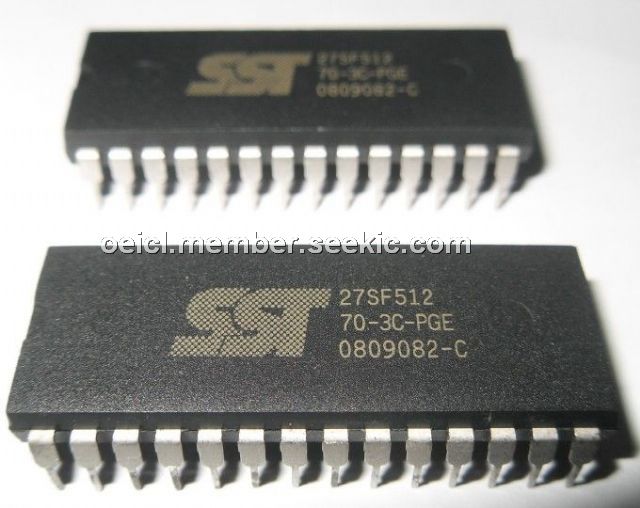

SST27SF512-70-3C-PGE

512 Kbit, Time Programmable Flash, DIP-28, -0.5V to VDD+0.5V, Superior Reliability

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.20~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.20~3.00

PartNumber:: SST27SF512-70-3C-PGE

Brand:: Silicon Storage Technology, Inc - SST | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. LIN HAIBIN's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-11

From Other Seller

Part Number:SST27SF512-70-3C-PGE
US $1.20 - 3.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
SPEAKER 8 OHM .3W

US $1.54 - 2.51 / Piece
(0) Remove
Quantity:

piece

Product Summary

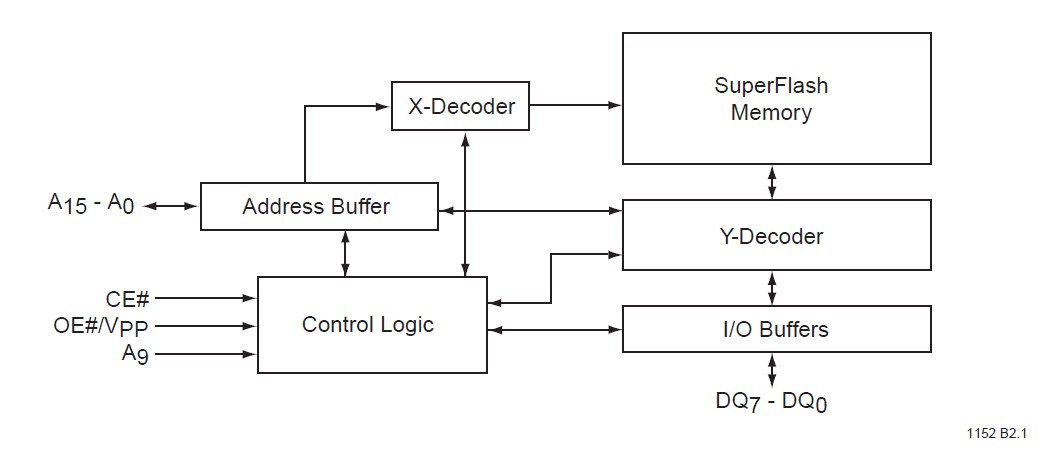

The SST27SF512-70-3C-PGE is a 64K 128K CMOS, Many-Time Programmable (MTP) low cost flash, manufactured with SST proprietary, high performance SuperFlash technology. The split-gate cell design and thick oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The MTP SST27SF512-70-3C-PGE can be electrically erased and programmed at least 1000 times using an external programmer with a 12V power supply. They have to be erased prior to programming. The SST27SF512-70-3C-PGE conform to JEDEC standard pinouts for byte-wide memories. Featuring high-performance Byte-Program, the SST27SF512-70-3C-PGE provide a Byte-Program time of 20 μs. Designed, manufactured, and tested for a wide spectrum of applications, these devices are offered with an endurance of at least 1000 cycles. Data retention is rated at greater than 100 years.

Parametrics

SST27SF512-70-3C-PGE absolute maximum ratings: (1)Temperature Under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential: -0.5V to VDD+0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential: -2.0V to VDD+2.0V; (5)Voltage on A9 and VPP Pin to Ground Potential: -0.5V to 14.0V; (6)Package Power Dissipation Capability (TA = 25): 1.0W; (7)Through Hole Lead Soldering Temperature (10 Seconds): 300℃; (8)Surface Mount Solder Reflow Temperature: 260℃ for 10 seconds; (9)Output Short Circuit Current: 100 mA.

Features

SST27SF512-70-3C-PGE features: (1)4.5-5.5V Read Operation; (2)Superior Reliability; (3)Low Power Consumption; (4)Fast Read Access Time; (5)Fast Byte-Program Operation; (6)Electrical Erase Using Programmer; (7)TTL I/O Compatibility; (8)JEDEC Standard Byte-wide EPROM Pinouts; (9)Packages Available; (10)All non-Pb (lead-free) devices are RoHS compliant.
