Product Summary

The ATMEGA168-20AU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA168-20AU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATMEGA168-20AU absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin except RESET with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA.

Features

ATMEGA168-20AU features: (1)High Performance, Low Power AVR 8-Bit Microcontroller; (2)Advanced RISC Architecture: 131 Powerful Instructions-Most Single Clock Cycle Execution, 32 x 8 General Purpose Working Registers, Fully Static Operation, Up to 20 MIPS Throughput at 20 MHz, On-chip 2-cycle Multiplier; (3)Non-volatile Program and Data Memories: 4/8/16K Bytes of In-System Self-Programmable Flash (ATmega48/88/168) Endurance: 10,000 Write/Erase Cycles, Optional Boot Code Section with Independent Lock Bits In-System Programming by On-chip Boot Program True Read-While-Write Operation, 256/512/512 Bytes EEPROM (ATmega48/88/168) Endurance: 100,000 Write/Erase Cycles.

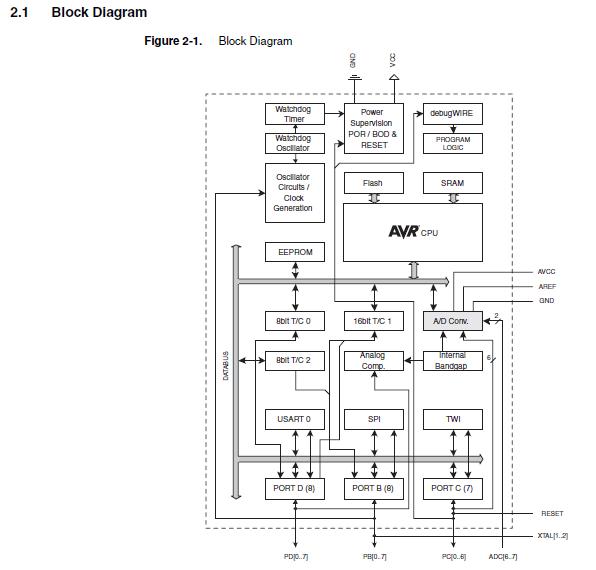

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ATmega168-20AU
ATmega168-20AU
Atmel
8-bit Microcontrollers (MCU) 16kB Flash 0.5kB EEPROM 23 I/O Pins
Data Sheet
0-1: $1.82
1-10: $1.75
10-25: $1.63
25-100: $1.45
ATMEGA168-20AUR
ATMEGA168-20AUR
Atmel
8-bit Microcontrollers (MCU) AVR 16K FLASH,ADC IND TEMP,5V
Data Sheet
0-1670: $1.48
