Product Summary

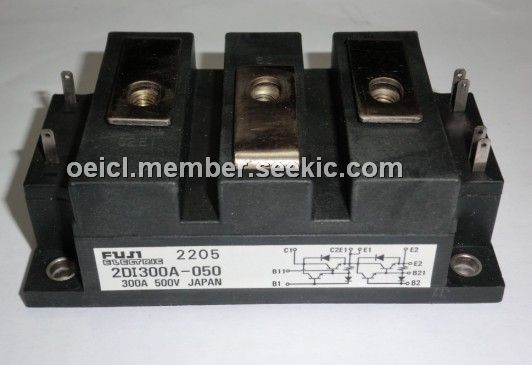

The 2DI300A-050 is a power transistor module. The applications of the device include high power switching, uninterruptible power supply, AC motor controls and welding machines.

Parametrics

2DI300A-050 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO: 10V; (5)IC: 300A; (6)ICP: 600A; (7)-IC: 300A; (8)IB: 10A; (9)IBP: 20A; (10)PC: 1200W; (11)PC: 2400W; (12)Tj: 150℃; (13)Tstg: -40 to 125℃; (14)m: 550g; (15)Viso: 2500V; (16)mounting: 3.5Nm; (17)terminlas: 4.5Nm.

Features

2DI300A-050 features: (1)high current; (2)high DC current gain; (3)insulated type.

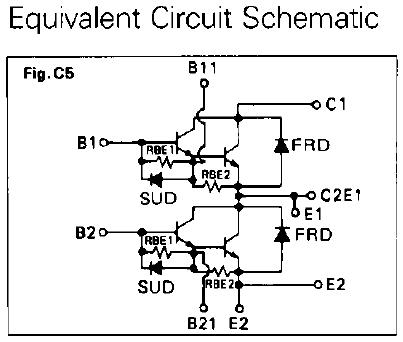

Diagrams
