Product Summary

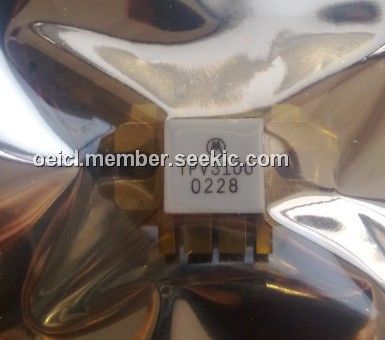

The TPV3100 is a VHF linear power transistor. It is designed for linear, push-pull amplifiers in VHF band III. The TPV3100 utilizes gold metallization, diffused emitter ballast resistors and a low thermal resistance header to ensure long term reliability.
Parametrics
TPV3100 absolute maximum ratings: (1)collector-emitter voltage:35V; (2)collector-base voltage:65V; (3)emitter-base voltage:3.5V; (4)collector current-continuous:8A; (5)operating junction temperature:200℃; (6)storage temperature range:-65℃ to +200℃.
Features
TPV3100 features: (1)Band III(170MHz to 230MHz); (2)28W-pref@-51dB IMD; (3)28V-VCC; (4)high gain-14dB, class A @ f=225MHz; (5)push-pull package; (6)gold metallization for reliability.

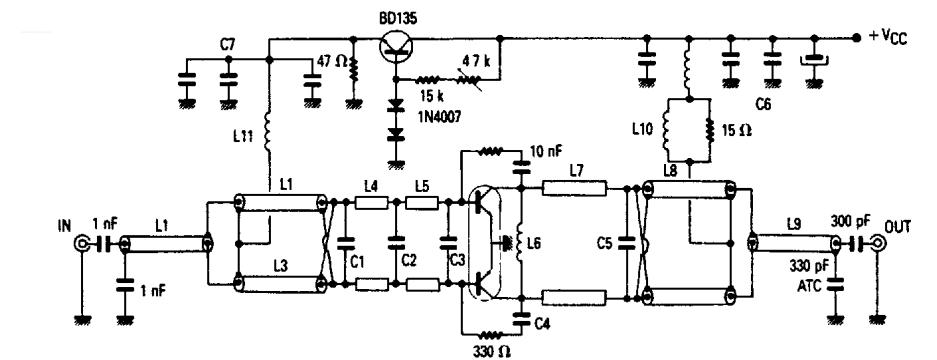

Diagrams
 |
