Product Summary

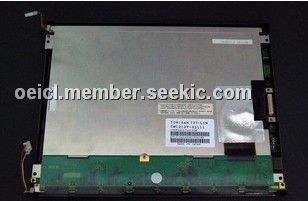

The TM121SV-02L11 is a TFT color LCD module.
Parametrics
TM121SV-02L11 absolute maximum ratings: (1)Power supply voltage VDD-VSS: 0 to 4.3 V; (2)Input voltage VI: VSS-0.3 to VDD+0.3 V; (3)CFL lamp current IL: 8mA; (4)Storage temperature TST: -20 to 60 ℃; (5)Operation temperature TOP: 0 to 50 ℃.
Features
TM121SV-02L11 electrical characteristics: (1)Power supply voltage VDD-VSS: 3.0 to 3.6 V; (2)Input logic voltage VIH: 2.0 V, VIL: 0.8 V; (3)Power supply current IDD: 250 to 400mA.

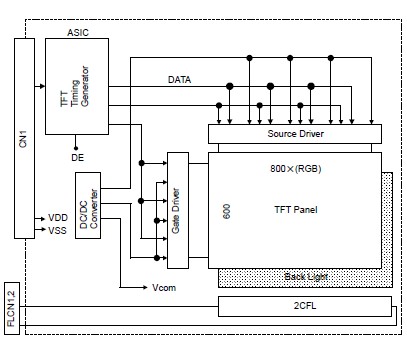

Diagrams
