Product Summary

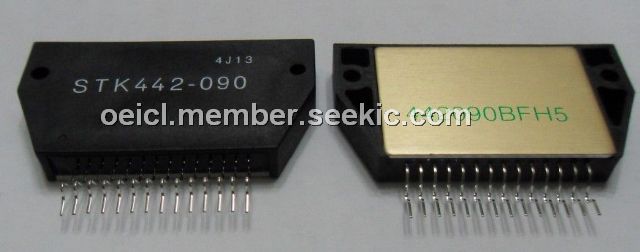

The STK442-090 is a 2 channels AF power amplifier.
Parametrics
STK442-090 absolute maximum ratings: (1)Power Supply Voltage Vcc when no signal: ±54 V; (2)Power Supply Voltage 2 Vcc max when R L=8ohm ,6ohm:±47 V; (3)Thermal Resistance Theta when j-c Per one power TR: 2.2 deg/W; (4)Junction Temperature Tj max: 150 deg; (5)Operating Substrate Temperature Tc max: 125 deg; (6)Storage Temperature Tstg: -30 to +125 deg; (7)Available Time for Load Short-circuit *4 ts, Vcc=35V,RL=6ohm,f=50Hz PO=50W,1ch drive: 0.3 s.
Features
STK442-090 features: (1)Case Outline 14Pins; (2)Function class AB 2 channels AF power amplifier; (3)Application 50W audio use; (4)Maximum Ratings / Ta=25deg.

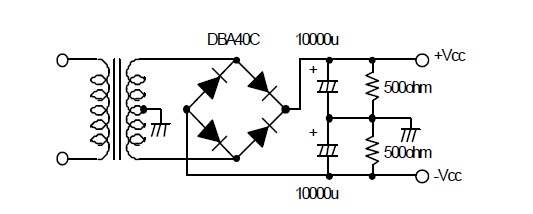

Diagrams
 |
