Product Summary

The QY10 is a quint 2-input OR/NOR gate. The QY10 offers five 2-input OR/NOR gates designed for use in high-performance ECL systems. The five gates are controlled by a common Enable signal. ALL inputs have 75KΩ pull-down resistors and all outputs are buffered.

Parametrics

QY10 absolute maximum ratings: (1)Input High Current, ALL inputs, IIH: 200μA; (2)Power Supply Current, IEE: -45 to -21mA.

Features

QY10 features: (1)Max propagation delay of 700ps; (2)IEE min of -45mA; (3)ESD protection of 2000V; (4)Industry standrad 100K ECL levels; (5)Extended supply voltage option: VEE= -4.2V to -5.5V; (6)Voltage and temperature compensation for improved noise immunity; (7)Internal 75KΩ input pull-sown resistors; (8)50% faster than National 300K; (9)Function and pinout compatible with National and Signetics F100K; (10)Available in CERDIP, CERPACK anf PLCC.

Diagrams

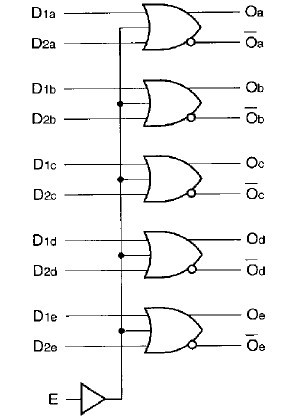

QY10 block diagram
