Product Summary
The PWR74 is a two-channel, dual-output DC/DC Converter designed for general purpose power conversion applications where high efficiency is more important than load regulation. The PWR74 provides two isolated plus and minus output voltages approximately equal to the input voltage magnitude. It operates over an input voltage range of 10VDC to 20VDC. The applications of the PWR74 are power for data acquisition, OP amps, etc., process control, portable equipment, test equipment.
Parametrics
PWR74 absolute maximum ratings: (1)input voltage:20VDC; (2)output current:±100mA; (3)output short-circuit duration:45s.
Features
PWR74 features: (1)tested in compliance with UL544; (2)output power to 3W; (3)high isolation voltage:1500VDC; (4)six-sided shielding; (5)input and output filtering; (6)low profile package:0.4" high.

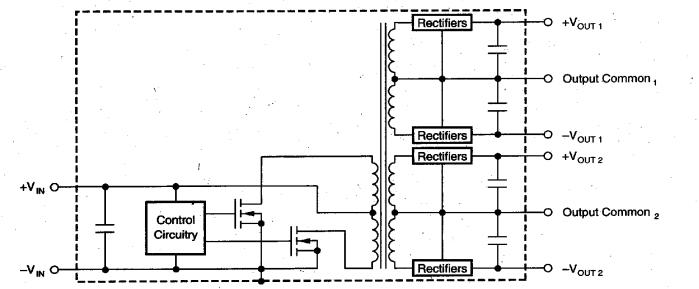

Diagrams
 |
