Product Summary

The PIC12F509I/SN is an 8-Bit Flash Microcontroller. It employs a RISC architecture with only 33 single-word/single-cycle instructions. All instructions are single cycle (200 μs) except for program branches, which take two cycles. The PIC12F509I/SN delivers performance an order of magnitude higher than its competitors in the same price category. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8-bit microcontrollers in its class. The easy-to-use and easy to remember instruction set reduces development time significantly. The PIC12F509I/SN is equipped with special features that reduce system cost and power requirements.

Parametrics

PIC12F509I/SN absolute maximum ratings: (1)Ambient temperature under bias:-40℃ to +125℃; (2)Storage temperature:-65℃ to +150℃; (3)Voltage on VDD with respect to VSS:0 to +6.5V; (4)Voltage on MCLR with respect to VSS:0 to +13.5V; (5)Voltage on all other pins with respect to VSS:-0.3V to (VDD + 0.3V); (6)Total power dissipation:800 mW; (7)Max. current out of VSS pin:200 mA; (8)Max. current into VDD pin:150 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD):±20 mA; (10)Output clamp current, IOK (VO < 0 or VO > VDD):±20 mA; (11)Max. output current sunk by any I/O pin:25 mA; (12)Max. output current sourced by any I/O pin:25 mA; (13)Max. output current sourced by I/O port:75 mA; (14)Max. output current sunk by I/O port:75 mA.

Features

PIC12F509I/SN features: (1)Only 33 Single-Word Instructions to Learn; (2)All Single-Cycle Instructions Except for Program Branches, which are Two-Cycle; (3)12-Bit Wide Instructions; (4)2-Level Deep Hardware Stack; (5)Direct, Indirect and Relative Addressing modes for Data and Instructions; (6)8-Bit Wide Data Path; (7)8 Special Function Hardware Registers; (8)4 MHz Precision Internal Oscillator: Factory calibrated to ±1%; (9)In-Circuit Serial Programming (ICSP); (10)In-Circuit Debugging (ICD) Support; (11)Power-On Reset (POR); (12)Device Reset Timer (DRT); (13)Watchdog Timer (WDT) with Dedicated On-Chip RC Oscillator for Reliable Operation; (14)Programmable Code Protection; (15)Multiplexed MCLR Input Pin; (16)Internal Weak Pull-Ups on I/O Pins; (17)Power-Saving Sleep mode; (18)Wake-Wp from Sleep on Pin Change.

Diagrams

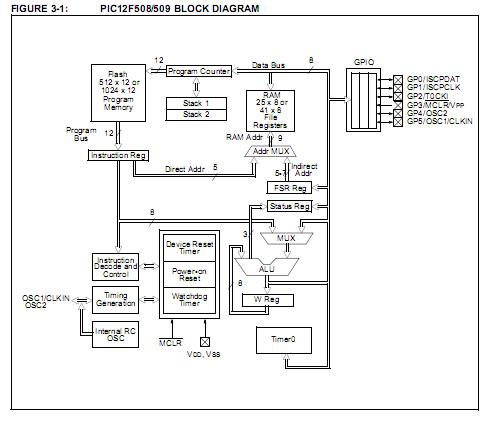

PIC12F509I/SN block diagram
