Product Summary

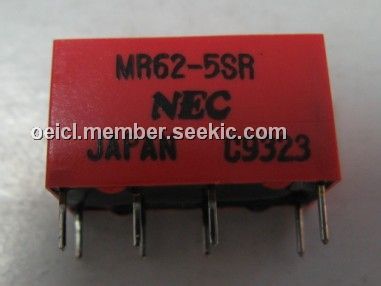

The MR62-5SR is a DPDT Signal Relay.
Parametrics
MR62-5SR absolute maximum ratings: (1)Initial contact resistance: 50m Ω Max.; (2)Contact material: Silver alloy with gold overlay; (3)Nominal operating power: Approx. 550mW (at 25℃); (4)Operate time (excluding bounce): Approx. 3ms; (5)Release time (excluding bounce): Approx. 2ms; (6)Insulation resistance: 1,000 MΩ at 500 VDC; (7)Breakdown voltage, Between open contacts: 500 VAC (for 1 minute); Between adjacent contacts: 1000 VAC (for 1 minute); Between coil and contacts: 1000 VAC (for 1 minute); (8)Coil temperature rise: 40℃ (at nominal coil voltage); (9)Shock resistance – 1/2 sine 11mS – MIL 202E-213B: 30 G(misoperating); (10)Vibration resistance – 10-500Hz Amp. 1.5mm – MIL 202E-204C: 100 G (misoperating); (11)Electrostatic capacitance, Between open contacts: Approx. 2pF; Between adjacent contacts: Approx. 2pF; Between coil and contacts Approx. 3pF; (12)Ambient temperature: -40 to +70℃; (13)Weight: Approx. 5 grams.
Features
MR62-5SR features: (1)DIL package; (2)BT type 47 approved; (3)1500V FCC surge between coil and contacts and adjacent contacts; (4)Fully sealed for immersion cleaning; (5)Bifurcated crossbar contacts for high reliability; (6)UL/CSA approved.

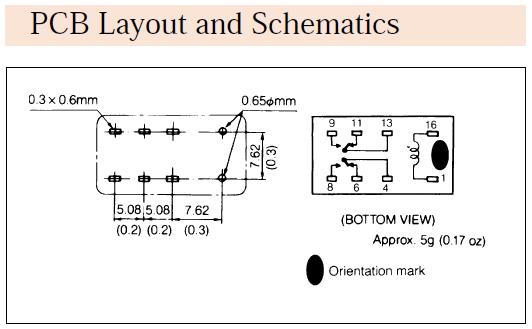

Diagrams
 |
