Product Summary

The 1N1186 is a Power Silicon Rectifier Diode.

Parametrics

1N1186 absolute maximum ratings: (1)IF(AV): 35A; 140A℃ when TC; (2)IFSM: 480A when 50 Hz; 500A when 60 Hz; (3)I2t: 1140A2S when 50Hz; 1040A2S when 60Hz; (4)I2√t: 16100A2√s; (5)VRRM: 50 to 600V.

Features

1N1186 features: (1)Low leakage current series; (2)Good surge current capability up to 1000 A; (3)Can be supplied to meet stringent military, aerospace and other high reliability requirements; (4)RoHS compliant.

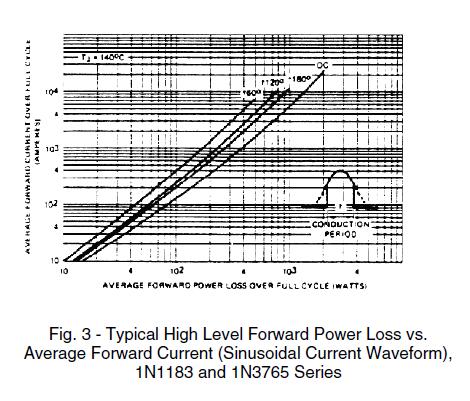

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
1N1186
1N1186

GeneSiC Semiconductor

Rectifiers 200V 35A Std. Recovery

Data Sheet

0-100: $3.57
100-250: $3.16
250-500: $2.75
500-1000: $2.65
1N1186A
1N1186A

GeneSiC Semiconductor

Rectifiers 200V 40A Std. Recovery

Data Sheet

0-1: $4.08
1-25: $3.98
25-100: $3.57
100-250: $3.16
1N1186AR
1N1186AR

GeneSiC Semiconductor

Rectifiers 200V 40A REV Leads Std. Recovery

Data Sheet

0-1: $4.08
1-25: $3.98
25-100: $3.57
100-250: $3.16
1N1186R
1N1186R

GeneSiC Semiconductor

Rectifiers 200V 35A REV Leads Std. Recovery

Data Sheet

0-100: $3.57
100-250: $3.16
250-500: $2.75
500-1000: $2.65
1N1186RA
1N1186RA


DIODE STD REC 200V 40A DO-5

Data Sheet

0-1: $4.58
1-10: $4.12
10-25: $3.75
25-100: $3.39
100-250: $3.11
250-500: $2.84
500-1000: $2.47
1000-2500: $2.38
2500-5000: $2.29
