Product Summary
The MD2202-D16 is the second-generation of M-Systems DiskOnChip series of products. It provides a small, single-chip, solid-state flash disk in a standard 32-pin DIP package. Combining a disk controller with flash memory on a single chip, the device is the solution where minimal weight, space, and power consumption are essential. The applications of the MD2202-D16 include: (1)Embedded systems; (2)Internet access devices; (3)Internet set-top boxes/ITV, Web browsers; (4)WBT, thin clients, network computers; (5)Routers, networking; (6)Web phones, car PCs, DVD, HPC; (7)Point of sale, industrial PCs; (8)Telecom, medical.
Parametrics
MD2202-D16 absolute maximum ratings: (1)DC supply voltage VCCS: -0.5 to 4.6/-0.3 to 6.0 V; (2)Input pin voltage VIN: -0.5 to VCC + 0.3/-0.3 to VCC + 0.3 V Input pin current IIN: -10 to 10 mA.
Features
MD2202-D16 features: (1)Single-chip plug-n-play flash disk; (2)Low power, single 3.3V or 5V power supply; (3)16MB to 576MB capacity (1GB in 2002); (4)Pinout and structure compatible with DiskOnChip Millennium DIP 8MB; (5)Simple, easy-to-integrate interface; (6)32-pin DIP, JEDEC standard, EEPROM-compatible pinout; (7)8KB sized memory window; (8)Boot OS capability; (9)Operates with DiskOnChip SDK in OS-less environments, ANSI-C source code kit; (10)Error Detection and Correction (EDC/ECC) for higher data reliability.

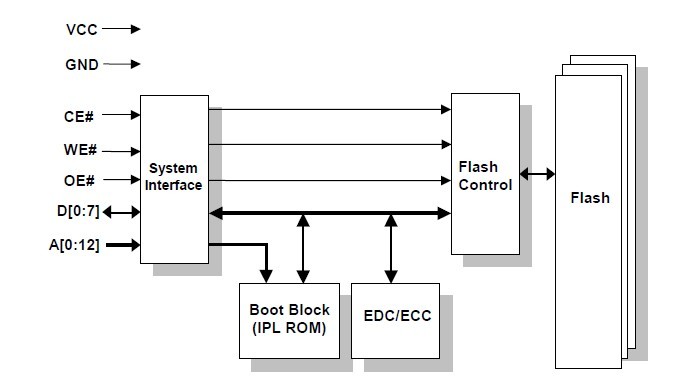

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MD2202-D16 |
|
IC DOC2000 16MB 32-DIP |
Data Sheet |
Negotiable |
|
||||
|
MD2202-D16-V3 |
|
IC DOC2000 16MB 32-DIP |
Data Sheet |
Negotiable |
|
||||
|
MD2202-D16-V3-X |
|
IC DOC2000 16MB 32-DIP |
Data Sheet |
Negotiable |
|
||||
|
MD2202-D16-X |
|
IC DOC2000 16MB 32-DIP |
Data Sheet |
Negotiable |
|
||||
