Product Summary

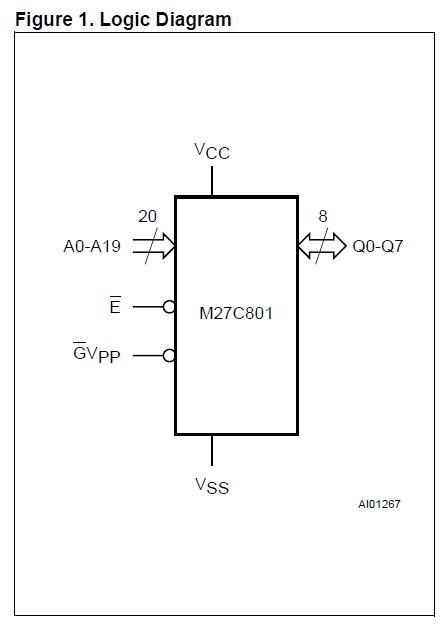

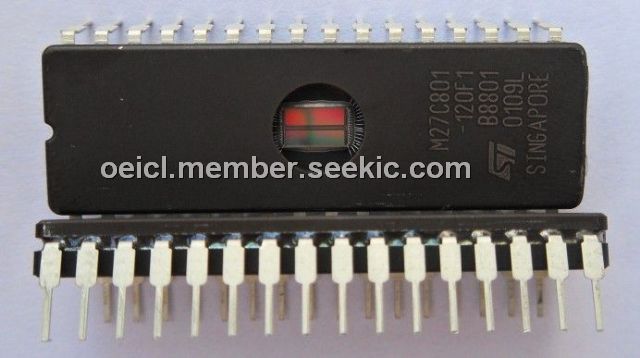

The M27C801-120F1 is an 8 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). The M27C801-120F1 is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 1,048,576 by 8 bits. The M27C801-120F1 (window ceramic frit-seal package) has transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.
Parametrics
M27C801-120F1 absolute maximum ratings: (1)Ambient Operating Temperature: –40 to 125 ℃; (2)TBIAS Temperature Under Bias: –50 to 125 ℃; (3)TSTG Storage Temperature: –65 to 150 ℃; (4)Input or Output Voltage (except A9): –2 to 7 V; (5)Supply Voltage: –2 to 7 V; (6)A9 Voltage: –2 to 13.5 V; (7)Program Supply Voltage: –2 to 14 V.
Features
M27C801-120F1 features: (1)5V ± 10% supply voltage in read operation; (2)access time: 45ns; (3)low power consumption: Active Current 35mA at 5MHz, Standby Current 100μA; (4)programming voltage: 12.75V ± 0.25V; (5)programming time: 50μs/word; (6)electronic signature: Manufacturer Code: 20h, Device Code: 42h.
