Product Summary

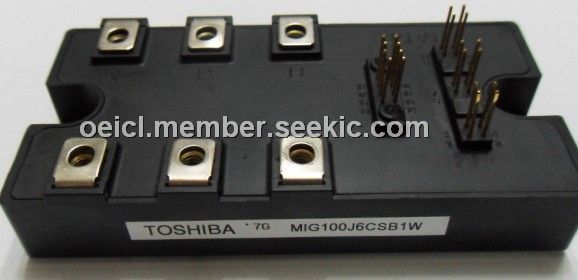

The MIG100J6CSB1W is an Intelligent Power Module. The applications of it are High Power Switching Applications and Motor Control Applications.
Parametrics
MIG100J6CSB1W absolute maximum ratings: (1)Supply voltage:450V ; (2)Collector-emitter voltage:600V ; (3)Collector current:100A ; (4)Forward current:100A ; (5)Collector power dissipation:590W ; (6)Junction temperature:150℃; (7)Control supply voltage:20V ; (8)Input voltage:20V ; (9)Fault output voltage:20V ; (10)Fault output current:14mA ; (11)Operating temperature:-20℃ to +100℃; (12)Storage temperature range:-40℃ to +125℃; (13)Isolation voltage:2500V ; (14)Screw torque (terminal):2 N.m; (15)Screw torque (mounting):3 N.m.
Features
MIG100J6CSB1W features: (1)Integrates inverter and control circuits (IGBT drive units, and units for protection against short-circuit current, overcurrent, undervoltage and overtemperature) into a single package; (2)The electrodes are isolated from case; (3)Low thermal resistance ; (4)VCE (sat) = 1.9 V (typ.) ; (5)UL recognized: File No. E87989.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MIG100J6CSB1W |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
