Product Summary

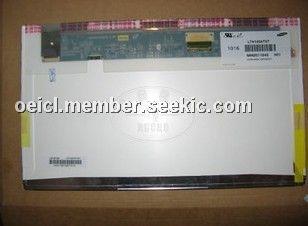

The LTN140AT07 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching devices. This model is composed of a TFT LCD panel, a driver circuit and a backlight system. The resolution of a 14.1" contains 1400 x 1050 pixels and can display up to 262,144 colors. 6 O’clock direction is the Optimum viewing angle. The applications of the LTN140AT07 include Notebook PC and desktop monitors, Display terminals for AV application products, Monitors for Industrial machine, If the usage of this product is not for PC application, but for others, please contact SEC.
Parametrics
LTN140AT07 absolute maximum ratings: (1)Lamp Current, IL: 3.0 to 6.0 mArms; (2)Lamp frequency, FL: 40 to 680 kHz.
Features
LTN140AT07 features: (1)Thin and light weight; (2)High contrast ratio; (3)SXGA-Plus((1400x1050) pixels) resolution; (4)Low power consumption; (5)DE (Data enable) only mode.

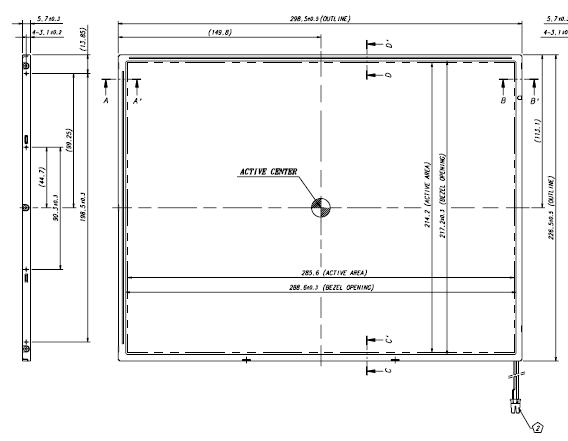

Diagrams
 |
