Product Summary

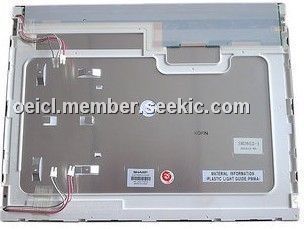

The LQ150X1LCD3 is a 15” inch industrial LCD-TFT module.
Parametrics
LQ150X1LCD3 specifications: (1)Display Diagonal: 15”; (2)Resolution: 1024(RGB)×768; (3)Technology: a-Si TFT-LCD; (4)Display Color: 16.2M (6-bit + FRC); (5)Display Mode: LVDS (1 ch, 8-bit); (6)Effective viewing: 304.1×228.1 mm; (7)Overall Dim.: 331.6×254.8 × 31.85 (Typ.) mm; (8)Backlight: 4 x CCFL; (9)Brightness (Nits): 400; (10)Contrast Ratio: 400:1; (11)Response Time: 25 (Typ.)(Tr+Td); (12)Panel Voltage: 3.3V (Typ.); (13)Operating Temp (deg C): -20+55; (14)Viewing Angle: 60/60/45/55 (Typ.)(CR≥10); (15)Net Weight: 1.32Kgs (Max.).
 |
 LQ150X1DG11 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
|
LQ150X1DG55 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
|
LQ150X1LG11 |
Sharp Microelectronics |
TFT Displays & Accessories 15" 1024x768 XGA 600nits LED Bklght |
Data Sheet |
|
|
||||||||||
 |
LQ150X1LG41 |
Sharp Microelectronics |
TFT Displays & Accessories 15" 1024X768 XGA |
Data Sheet |
|
|
||||||||||
|
LQ150X1LG45 |
Sharp Microelectronics |
TFT Displays & Accessories 15" 1024x768 XGA LCD |
Data Sheet |
Negotiable |
|
||||||||||
|
LQ150X1LG51 |
Sharp Microelectronics |
TFT Displays & Accessories 15" (1024X768) XGA |
Data Sheet |
|
|
||||||||||
