Product Summary

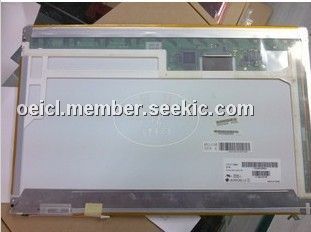

The LP171W01 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent Lamp (CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. The LP171W01 is a transmissive type display operating in the normally white mode. The LP171W01 has 17.1 inches diagonally measured active display area with WXGA resolution(900 vertical by 1440 horizontal pixel array).
Parametrics
LP171W01 absolute maximum ratings: (1)Operating Ambient Humidity:10 to 90 %RH; (2)Storage Humidity:10 to 90 %RH; (3)Storage Temperature:-20 to 60 ℃; (4)Operating Temperature:0 to 50 ℃; (5)Power Input Voltage:-0.3V to 4.0V.
Features
LP171W01 features: (1)Pixel Format:1440 horiz. By 900 vert. Pixels RGB strip arrangement; (2)Luminance, White:160 cd/m2(Typ.); (3)Power Consumption:Total 6.28 Watt(Typ.) @ LCM circuit 1.78Watt(Typ.), B/L input 4.8Watt(Typ.); (4)Weight:760 g (Max.), 740 g(Typ.); (5)Display Operating Mode: Transmissive mode, normally white; (6)Surface Treatment:Hard coating(3H) Anti-glare treatment of the front polarizer; (7)Outline Dimension:382.2(H) × 244.5(V) × 6.5(D, max) mm; (8)Active Screen Size:17.1 inches diagona.
Diagrams
 |
