Product Summary
The HA17324A is a quad operational amplifier that provides high gain and internal phase compensation, with single power supply. It can be widely used to control equipments.
Parametrics
HA17324A absolute maximum ratings: (1)Supply voltage:32V ; (2)Sink current:50mA; (3)Power dissipation:625mW; (4)Common mode input voltage:–0.3V to VCC; (5)Differential input voltage:±VCC; (6)Operating temperature:–20℃ to +75℃; (7)Storage temperature:–55℃ to +125℃.
Features
HA17324A features: (1)Wide range of supply voltage, and single power supply used; (2)Internal phase compensation; (3)Wide range of common mode voltage, and possible to operate with an input about 0V.

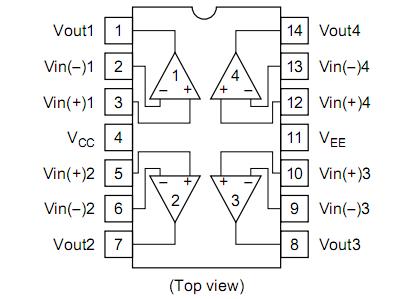

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() HA17324A |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() HA17324AFP |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() HA17324AP |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() HA17324ARP |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
