Product Summary
The FS2VS is a power MOSFET. The applications of the device include SMPS, DC-DC Converter, battery charger, power supply of printer, copier, HDD, FDD, TV, VCR, personal computer etc.
Parametrics
FS2VS absolute maximum ratings: (1)Drain-source voltage, VDSS: 600V; (2)Gate-source voltage, VGSS: ±30V; (3)Drain current, ID: 2A; (4)Drain current (Pulsed), IDM: 6A; (5)Maximum power dissipation, PD: 60W; (6)Channel temperature, Tch: -55 to 150℃; (7)Storage temperature, Tstg: -55 to 150℃; (8)Weight: 1.2g.
Features
FS2VS features: (1)VDSS: 600V; (2)rDS (ON) (MAX): 6.4Ω; (3)ID: 2A.

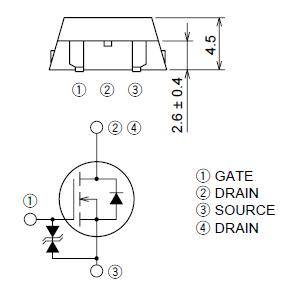

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FS2VS-12 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
FS2VS-14A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
FS2VS-16A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
FS2VS-18A |
Other |
|
Data Sheet |
Negotiable |
|
||||
