Product Summary

The EE-SX671A is a Photomicrosensor.

Parametrics

EE-SX671A absolute maximum ratings: (1)Power supply voltage: 5 to 24 VDC ±10%, ripple (p-p): 10% max; (2)Current consumption: 35 mA max. (NPN), 30 mA max. (PNP); (3)Response frequency: 1 kHz max; (4)Ambient temperature Operating: -25℃ to 55℃; Storage: -30℃ to 80℃.

Features

EE-SX671A features: (1)PNP output models newly added; (2)Standard, L-shaped, T-shaped, and Close-mounting: Five series of models available; (3)Select from thirty output variations, including Light-ON or Dark-ON/Light-ON (selectable) models; (4)Response frequency as high as 1 kHz; (5)Easy operation monitoring with bright light indicator; (6)Wide operating voltage range from 5 to 24 VDC; (7)Models with operation indicators that are lit when sensing objects are detected (when light is interrupted) are available.

Diagrams

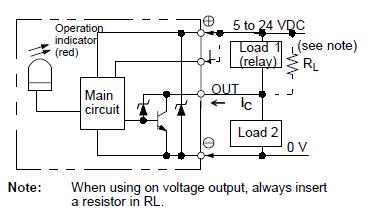

EE-SX671A block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EE-SX671A
EE-SX671A
Omron Industrial
Optical Switches, Transmissive, with Phototransistor Output TRNS LIGHT-ON/DRK-ON
Data Sheet
0-1: $12.25
1-2: $11.77
2-5: $11.05
5-10: $10.53
