Product Summary

The E3JK-5M2 is a Built-in power supply photoelectric sensor.

Parametrics

E3JK-5M2 absolute maximum ratings: (1)Power supply voltage: 12 to 240 VDC ±10% ripple (p-p): 10% max. 24 to 240 VAC ±10% 50/60 Hz; (2)Current consumption, DC: 3 W max; AC: 3W max; (3)Ambient temperature Operating: -25℃ to 55℃; Storage: -30℃ to 70℃; (4)Insulation resistance: 20 M W min. at 500 VDC; (5)Dielectric strength: 1,500 VAC at 50/60 Hz for 1 minute.

Features

E3JK-5M2 feature: Slim body full of functions and economically available.

Diagrams

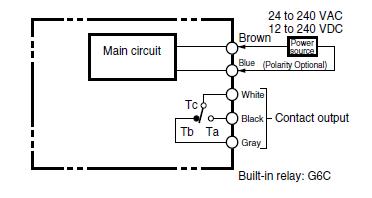

E3JK-5M2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
E3JK-5M2-N-US
E3JK-5M2-N-US


CUL, T-B, D-ON, AC/DC VOLTS

Data Sheet

0-1: $135.09
E3JK-5M2-US
E3JK-5M2-US

Omron Industrial

Photoelectric Sensors Through Beam 5M Dark-ON

Data Sheet

0-1: $119.80
1-5: $116.01
5-10: $113.90
10-25: $109.68
