Product Summary
The E3F3-D81 is a Threaded Cylindrical Photoelectric sensor.
Parametrics
E3F3-D81 absolute maximum ratings: (1)Power supply voltage: 12 to 24 VDC±10%, ripple (p-p): 10% max; (2)Current consumption: 25 mA max; (3)Ambient temperature, Operating: -25 to 55℃ (with no icing or condensation); Storage: -30 to 70℃; (4)Vibration resistance: 10 to 55 Hz.
Features
E3F3-D81 features: (1)Up-to-date photo-IC to increase noise immunity; (2)M18 DIN-sized cylindrical housing, ABS resin case; (3)Long sensing distance (30 cm) with sensitivity adjustor for diffuse type; (4)Short-circuit and reverse connection protection.

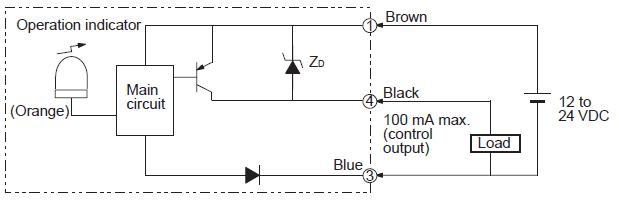

Diagrams
 |
