Product Summary
The CPM1A-MAD11 is an Analog I/O Unit.
Parametrics
CPM1A-MAD11 absolute maximum ratings: (1)Number of inputs: 2 inputs (2 words allocated); (2)Input signal range: 0 to 5 VDC, 1 to 5 VDC, 0 to 10 VDC, or –10 to 10 VDC; (3)Input signal range: 0 to 20 mA or 4 to 20 mA; (4)Max. rated input: ±15 V ; (5)Max. rated input: ±30 mA; (6)External input impedance: 1 MΩ min; (7)External input impedance: 250 W; (8)Resolution: 1/6000 (full scale); (9)Overall accuracy: 0 to 55℃.
Features
CPM1A-MAD11 features: (1)The analog input range can be set to 0 to 5 VDC, 1 to 5 VDC, 0 to 10 VDC, -10 to 10 VDC, 0 to 20 mA, or 4 to 20 mA. The inputs have a resolution of 1/6000; (2)An open-circuit detection function can be used with the 1 to 5 VDC and 4 to 20 mA settings; (3)The analog output range can be set to 1 to 5 VDC, 0 to 10 VDC, -10 to 10 VDC, 0 to 20 mA, or 4 to 20 mA. The outputs have a resolution of 1/6000.

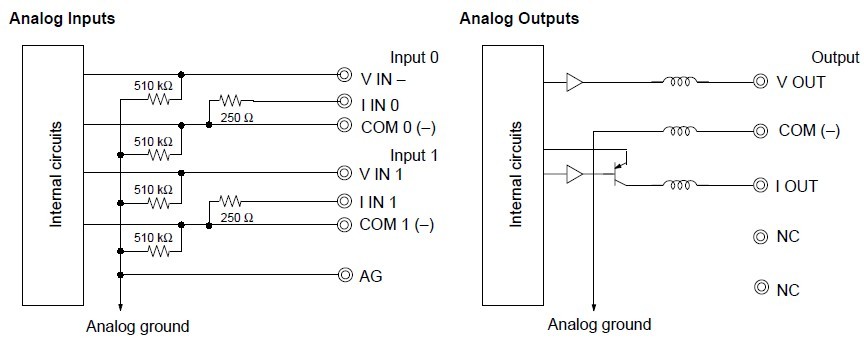

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CPM1A-MAD11 |
|
HIGH RES ANALOG (COO) |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |

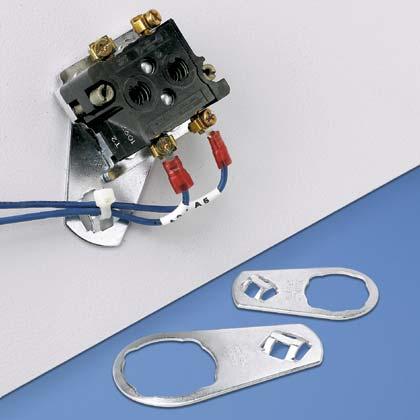

CPM122S-C |
