Product Summary
The C180B is a phase control SCR. The C180B power silicon controlled rectifier is desined for phase control application. It is all-diffused, compression bonded encapsulated device employing the fied-proven amplifying gate. The applications of the C180B are: (1)Power supplies; (2)Battery chargers; (3)Motor control.
Parametrics
C180B maximum ratings: (1)Vendor Powerex Inc; (2)Category Discrete Semiconductor Products ; (3)SCR Type Standard Recovery; (4)Voltage - Off State 200V; (5)Voltage - Gate Trigger (Vgt) (Max) 3V; (6)Mounting Type Chassis, Stud Mount; (7)Package / Case TO-209AB, TO-93-4, Stud; (8)Packaging Bulk; (9)Lead Free Status Lead Free; (10)RoHS Status RoHS Compliant.
Features
C180B features: (1)Low on-state voltage; (2)High DI/DT; (3)High DV/DT; (4)Hermetic packageing; (5)Excellent surge and I2t ratings.

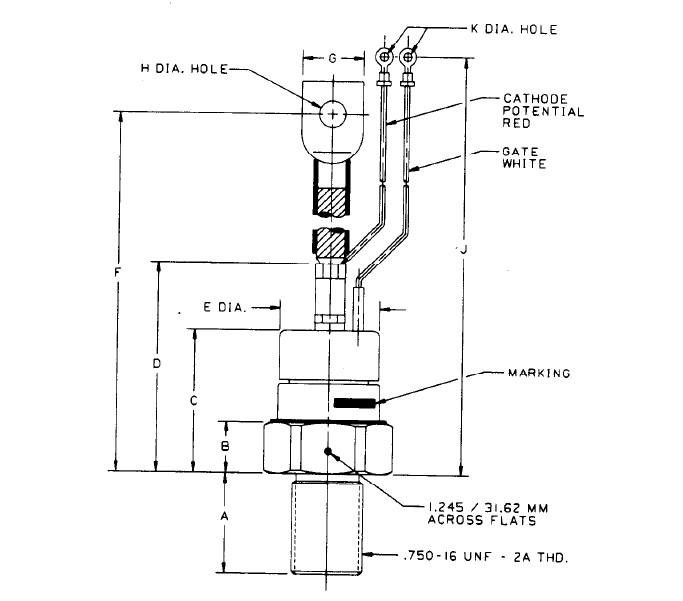

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 C180BX500 |
|
THYRISTOR STUD 200V 190A TO-93 |
Data Sheet |
|
|
||||||
|
C180B |
|
THYRISTOR STUD 200V 150A TO-93 |
Data Sheet |
|
|
||||||
