Product Summary
The AM29F040B-70JC is a 4 Mbit, 5.0 volt-only Flash memory organized as 524,288 Kbytes of 8 bits each. The 512 Kbytes of data are divided into eight sectors of 64 Kbytes each for flexible erase capability. The AM29F040B-70JC is offered in 32-pin PLCC, TSOP, and PDIP packages. This device is designed to be programmed in-system with the standard system 5.0 volt VCC supply. A 12.0 volt VPP is not required for write or erase operations. The device can also be programmed in standard EPROM programmers.
Parametrics
AM29F040B-70JC maximum ratings: (1)Storage Temperature:Plastic Packages, –65℃ to +125℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to Ground: VCC (Note 1), –2.0 V to 7.0 V; (4)A9 (Note 2): –2.0 V to 12.5 V; (5)All other pins (Note 1): –2.0 V to 7.0 V; (6)Output Short Circuit Current (Note 3): 200 mA.
Features
AM29F040B-70JC features: (1)Compatible with Voltage or Current Mode Topologies; (2)Practical Operation Switching Frequencies to 1MHz; (3)50ns Propagation Delay to Output; (4)High Current Dual Totem Pole Outputs(1.5A Peak); (5)Wide Bandwidth Error Amplifier; (6)Fully Latched Logic with Double Pulse Suppression; (7)Pulse-by-Pulse Current Limiting; (8)Soft Start / Max. Duty Cycle Control; (9)Under-Voltage Lockout with Hysteresis; (10)Low Start Up Current (1.1mA).

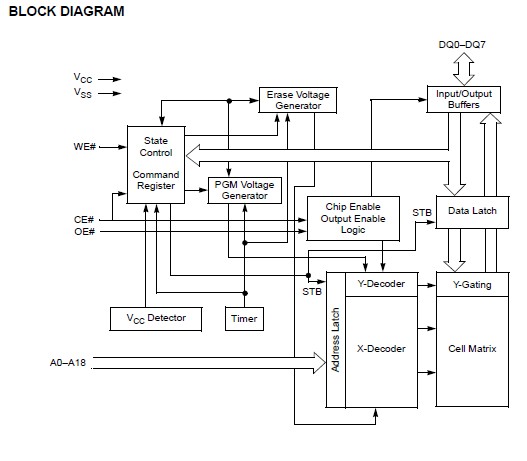

Diagrams
 |
