Product Summary
The ADXL325BCPZ is a small, low power, complete 3-axis accelerometer with signal conditioned voltage outputs. The product measures acceleration with a minimum full-scale range of ±5 g. It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration, resulting from motion, shock, or vibration. The ADXL325BCPZ is suitable for Cost-sensitive, low power, motion- and tilt-sensing applications, Mobile devices, Gaming systems, Disk drive protection, Image stabilization and Sports and health devices.
Parametrics
ADXL325BCPZ absolute maximum ratings: (1)Acceleration (Any Axis, Unpowered): 10,000 g; (2)Acceleration (Any Axis, Powered): 10,000 g; (3)VS: -0.3 V to +3.6 V; (4)All Other Pins: (COM - 0.3 V) to (VS + 0.3 V); (5)Temperature Range (Powered): -55 to +125℃; (6)Temperature Range (Storage): -65 to +150℃.
Features
ADXL325BCPZ features: (1)3-axis sensing; (2)Small, low profile package, 4 mm × 4 mm × 1.45 mm LFCSP; (3)Low power: 350 μA typical; (4)Single-supply operation: 1.8 V to 3.6 V; (5)10,000 g shock survival; (6)Excellent temperature stability; (7)Bandwidth adjustment with a single capacitor per axis; (8)RoHS/WEEE lead-free compliant.

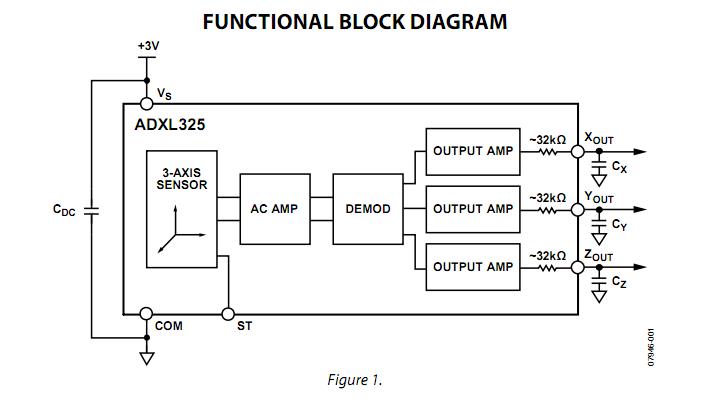

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADXL325BCPZ |
|
IC ACCELEROMETER 3AX 5G 16LFCSP |
Data Sheet |
|
|
||||||||
|
ADXL325BCPZ-RL |
|
IC ACCELEROMETER 3AX 5G 16LFCSP |
Data Sheet |
|
|
||||||||
 |
ADXL325BCPZ-RL7 |
|
IC ACCELEROMETER 3AX 5G 16-LFCSP |
Data Sheet |
|
|
||||||||
