Product Summary
The ADXL203CE is a high precision, low power, complete single and dual axis accelerometer with signal conditioned voltage outputs, all on a single monolithic IC. The device measures acceleration with a full-scale range of ±1.7 g . The applications of the ADXL203CE include Vehicle Dynamic Control (VDC)/Electronic Stability Program, (ESP) systems, Electronic chassis control, Electronic braking, Platform stabilization/leveling, Navigation, Alarms and motion detectors and High accuracy, 2-axis tilt sensing.
Parametrics
ADXL203CE absolute maximum ratings: (1)Acceleration (Any Axis, Unpowered): 3,500 g; (2)Acceleration (Any Axis, Powered): 3,500 g; (3)Drop Test (Concrete Surface): 1.2 m; (4)VS: –0.3 V to +7.0 V; (5)All Other Pins: (COM – 0.3 V) to (VS + 0.3 V) ; (6)Operating Temperature Range: –55 to +125℃; (7)Storage Temperature: –65 to +150℃.
Features
ADXL203CE features: (1)High performance, single/dual axis accelerometer on a single IC chip; (2)5 mm × 5 mm × 2 mm LCC package; (3)1 mg resolution at 60 Hz; (4)Low power: 700 μA at VS = 5 V (typical); (5)High zero g bias stability; (6)High sensitivity accuracy; (7)–40 to +125℃ temperature range; (8)X and Y axes aligned to within 0.1° (typical); (9)BW adjustment with a single capacitor; (10)Single-supply operation; (11)3500 g shock survival.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

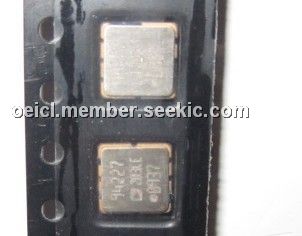

![]() ADXL203CE |
![]() |
![]() IC ACCELEROMETER DUAL-AXIS 8CLCC |
![]() Data Sheet |
![]()
|
|
||||||||||||||||
![]() |
![]() ADXL203CE-REEL |
![]() |
![]() IC ACCELEROMETER DUAL-AXIS 8CLCC |
![]() Data Sheet |
![]()
|
|
