Product Summary

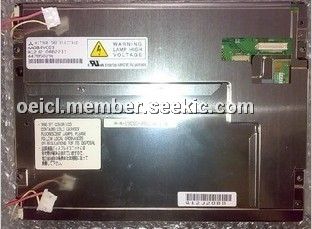

The AA084VC03 is an 8.4-inch color TFT-LCD (Thin Film Transistor Liquid CrystalDisplay) module. The AA084VC03 is composed of LCD panel, driver ICs, control circuit, and backlight. By applying 6 bit digital data 640 x 480, 262K - color images are displayed on the 8.4-inch diagonal screen. Input power voltage is 3.3 V (does not includes power for the backlight). Both 3.3V CMOS and 5.0V-CMOS voltage levels are acceptable for logic input voltage. Inverter for backlight is not included in this module.

Parametrics

AA084VC03 absolute maximum ratings: (1)Power Supply Voltage for LCD, VCC: -0.3 to 5.5 V; (2)Logic Input Voltage, VIN: 0 to 7 V; (3)Operating Temperature, Top: 0 to 50℃; (4)Storage Temperature, Tstg: -20 to 60℃.

Features

AA084VC03 features: (1)Lamp Voltage, VL: 465 V; (2)Lamp Current, IL: 5.0 mA; (3)Lamp Starting Voltage, VS: 980 V.

Diagrams

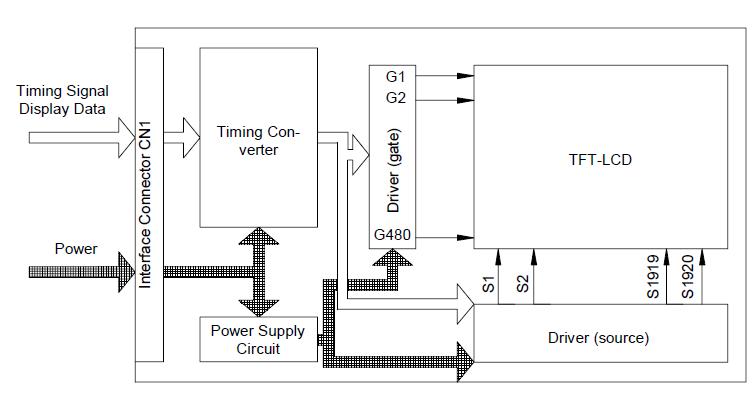

AA084VC03 block diagram

AA084SA01--T2
AA084SA01--T2
Mitsubishi Electric
TFT Displays & Accessories 8.4" Touch
Data Sheet
Negotiable
AA084SB01
AA084SB01
Mitsubishi Electric
TFT Displays & Accessories 8.4" SVGA LED
Data Sheet
0-1: $186.27
1-5: $173.33
5-10: $166.40
10-25: $160.00
AA084SB01--T2
AA084SB01--T2
Mitsubishi Electric
TFT Displays & Accessories 8.4" LED Touch
Data Sheet
0-1: $227.02
1-5: $211.25
5-10: $202.80
10-25: $195.00
AA084VB02
AA084VB02
Other

Data Sheet
Negotiable
AA084VC 05
AA084VC 05
Other

Data Sheet
Negotiable
AA084VG01
AA084VG01
Mitsubishi Electric
TFT Displays & Accessories 8.4" VGA LED
Data Sheet
0-1: $162.98
1-5: $151.67
5-10: $145.60
10-25: $140.00
