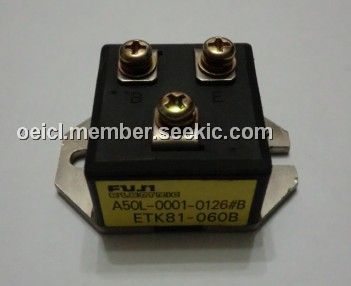

Product Summary

The A50L-0001-0126#B Fanuc Transistor Module is a 50 amp bipolar darlington power transistor used in Earlier Fanuc drive units, that were the next step from step 1 thru 4 axis drives and 1st generation thyrister or SCR based drives. The applications of the A50L-0001-0126#B are: DC motor controls. 2.Controlled DC power supplies. AC switch and thermal control. Synchronous motor excitation.

Parametrics

A50L-0001-0126#B maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VEBO: 6V; (4)IC: 50A; (5)ICP: 100A; (6)IC: 50A; (7)IB: 3A; (8)IBP: 6A; (9)PC: 300W; (10)Tj: +150℃; (11)Tstg: -40 to +125℃; (12)m: 100g; (13)Viso: 2000V; (14)Mounting: 1.7Nm.

Features

A50L-0001-0126#B features: (1)IT (AV) = 5 - 500As; (2)V DRM/V RRM=100 - 5000V; (3)Hermetic metal case with ceramic insulator; (4)Hermetic glass-metal seal; (5)Capsule package for double sided cooling; (6)Shallow design with single sided cooling; (7)International standard case; (8)In accordance with IEC international electrical committee standard.

Diagrams

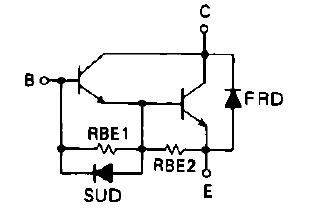

A50L-0001-0126#B simplified circuit
