Product Summary
The 2MBI600NT-060-01 is an IGBT module. The applications of it are High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.
Parametrics
2MBI600NT-060-01 absolute maximum ratings: (1)Collector-Emitter voltage:600V; (2)Gate-Emitter voltage:±20V; (3)Collector current:Continuous:600A, 1ms:1200A; (4)Max. power dissipation:2100W; (5)Operating temperature:+150℃; (6)Storage temperature:-40℃ to +125℃; (7)Isolation voltage:2500V.
Features
2MBI600NT-060-01 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (~3 Times Rated Current).

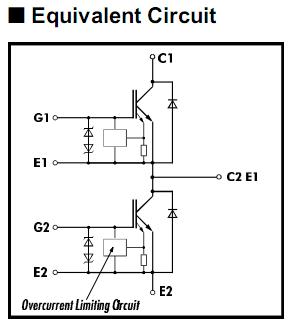

Diagrams
 |
