TDA7850

audio power amplifier, ZIP-25, 18V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~10.00

PartNumber:: TDA7850

Brand:: STMicroelectronics - ST | Pack: ZIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. LIN HAIBIN's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-15

From Other Seller

Part Number:TDA7850
US $8.00 - 10.00
001795 - KEY CABINET, TOUCHPOINT LOCK, 30KEYS

US $0.00 - 1.00 / Piece
(0) Remove
ENTRELEC UK023100007MARKER, BLANK, 5X10MM, 100PK

US $3.70 - 3.08 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TDA7850 is a breakthrough MOSFET technology class AB audio power amplifier in Flexiwatt27 package designed for high power car radio. The fully complementary P-Channel/NChannel output structure allows a rail to rail output voltage swing which, combined with high output current and minimized saturation losses sets new power references in the car-radio field, with unparalleled distortion performances. The TDA7850 integrates a DC offset detector.

Parametrics

TDA7850 absolute maxing ratings: (1)VS Operating supply voltage: 18 V; (2)VS (DC) DC supply voltage: 28 V; (3)VS (pk) Peak supply voltage (for t = 50ms): 50 V; (4)IO Output peak current repetitive (duty cycle 10% at f = 10Hz): 9A; non repetitive (t = 100μs): 10A; (5)Ptot Power dissipation Tcase = 70℃: 80 W; (6)Tj Junction temperature: 150 ℃; (7)Tstg Storage temperature: -55 to 150 ℃.

Features

TDA7850 features: (1)High output power capability: 4 × 50W/4Ω max; 4 × 30W/4Ω@ 14.4V, 1KHz, 10%; 4 × 80W/2Ω max; 4 × 55W/2Ω @ 14.4V, 1KHz, 10%; (2)MOSFET output power stage; (3)Excellent 2Ω driving capability; (4)Hi-fi class distortion; (5)Low output noise; (6)St-by function; (7)Mute function; (8)Automute at min. supply voltage detection; (9)Low external component count: Internally fixed gain (26dB); No external compensation; No bootstrap capacitors; (10)On board 0.35A high side driver.

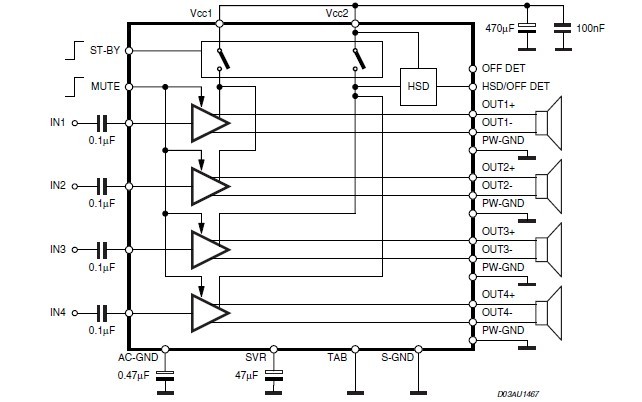

Diagrams
