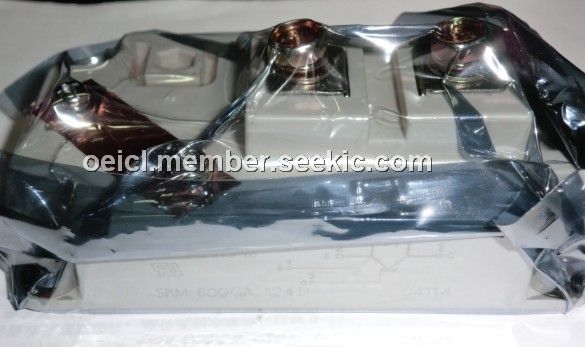

Product Summary

The SKM600GA124D is a low loss IGBT module. The application of the SKM600GA124D are: Inverters for AC motors, Power supply units for DCmotors, DC power supply uints for battery chargers, General purpose DC power supply uints.

Parametrics

SKM600GA124D maximum ratings: (1)VCES: 1200V; (2)VCGR, RGE=20 KΩ: 1200V; (3)Ic Tcase=25/80℃: 700/600A; (4)ICM Tcase=25/80℃, tp=1ms: 1400/1200A; (5)VGES: ±20V; (6)Ptot, per IGBT, Tcase=25℃: 4000W; (7)Tj(Tstg): -40 to 150(125)℃.

Features

SKM600GA124D features: (1)N channel, homogeneous Silicon structure; (2)Low inductance case; (3)Very low tail current with low temperature dependence; (4)High short circuit capability; (5)Fast & soft inverse CAL diodes; (6)Large clearance and creepage distance.

Diagrams

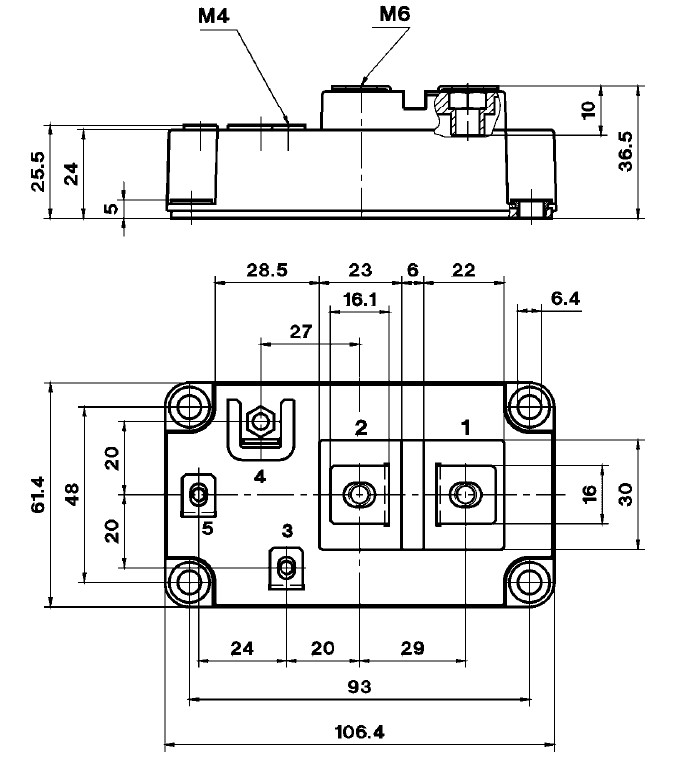

SKM600GA124D block diagram

SKM600GA125D
SKM600GA125D
