Product Summary

The SKD31/16 is a power bridge rectifier. It is widely used as DC power supply for transistorized.

Parametrics

SKD31/16 absolute maximum ratings: (1)Vrsm: 1600V; (2)VrRm, VDRm: 1600V; (3)Tvj: -40 to +125℃; (4)Tstg: -40 to +125℃.

Features

SKD31/16 features: (1)sturdy isolated metal baseplate; (2)fast on terminals with solder tips; (3)suitable for wave soldering; (4)high surge current ratings; (5)UL recognized.

Diagrams

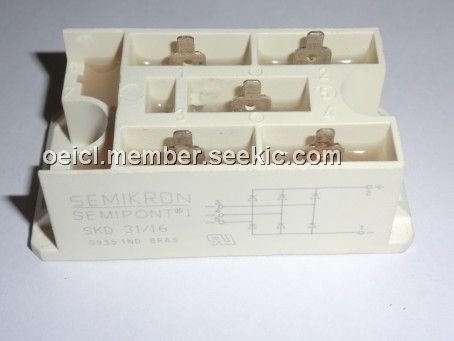

SKD31/16 internal diagram

SKD31
SKD31

Other


Data Sheet

Negotiable
