Product Summary

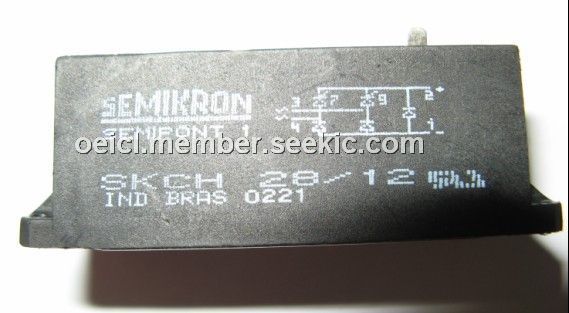

The SKCH28-12 is a Controllable Bridge Rectifier. The applications of the SKCH28-12 include controllable single phase rectifier, DC power supplies, DC motor controllers, DC motor field controllers.
Parametrics
SKCH28-12 absolute maximum ratings: (1)ID: 30 A at Tc=85℃, 13 A at Ta=45℃; chassis, 15A at Ta=45℃; P5A/100; (2)ITSM, IFSM: 320 A at Tvj=25℃; 10ms, 280 A at Tvj=125℃; 10ms; (3)i2t: 510 A2s; (4)VT: 2.25 V max at Tvj=25℃; IT=75 A; (5)VT(TO): 1 V max at Tvj=125℃; (6)rT: 16mΩ max at Tvj=125℃; (7)IDD; IRD: 8 mA max at Tvj=125℃; VDD=VDRM; VRD=VRRM; (8)tgd: 1μs at Tvj=25℃; IG=1A; diG/dt=1A/s; (9)tgr: 1μs at VD=0.67·VDRM.
Features
SKCH28-12 features: (1)study isolated metal baseplate; (2)fast-on terminals with solder tips; (3)suitable for wave soldering; (4)high surge current rating; (5)UL recognized, file no. E 63 532.

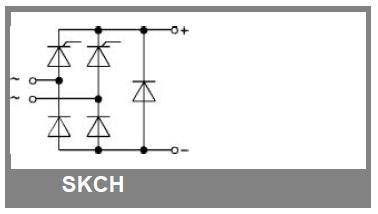

Diagrams
 |
