Product Summary

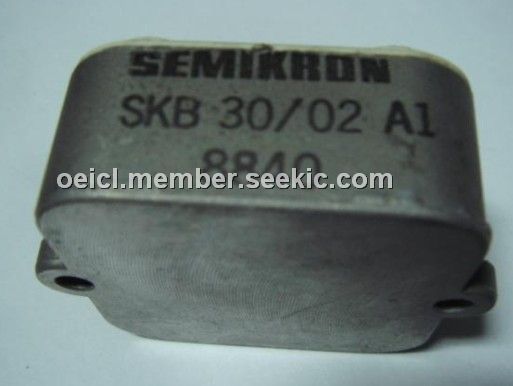

The SKB30-02A1 is a Power Bridge Rectifier. The applications of it are single phase rectifiers for power supplies, input rectifiers for variable frequency drives, rectifiers for DC motor field supplies, battery charger rectifiers.
Parametrics
SKB30-02A1 general specifications: (1)VF:max.2.2V; (2)V(TO):max.0.85V; (3)I2t:max.12mΩ; (4)Ird:300μA; (5)trr:25μs; (6)fG:2000Hz; (7)Tvj:-40℃ to +150℃; (8)Tstg:-55℃ to +150℃.
Features
SKB30-02A1 features: (1)isolated metal case with screw terminals; (2)blocking voltage up to 1600V; (3)high surge current; (4)easy chassis mounting; (5)UL recognized, file no.E63 532.
Diagrams
 |
