Product Summary
The QJ71C24N-R2 is a New Q series serial communication module.
Parametrics
QJ71C24N-R2 absolute maximum ratings: (1)Output frequency: 1 to 200000KHz; (2)internal power consumption: 5VDC; (3)external power consumption: 0.31A; (4)Accessories: 40-pin.
Features
QJ71C24N-R2 features: (1)Upto 230,400 bps transmission speed, The total speed for 2 channels is now 230,400 bps. Thus, using 2 channels simultaneously enables high-speed communication at a maximum speed of 115,200 bps for each channel; (2)Support for circuit trace and communication test of GX Configurator-SC Version 2. GX Configurator-SC Version 2 together with the QJ71C24N (-R2/R4) allows the circuit trace function to monitor the send/receive data. The communication test function of GX Configurator-SC Version 2 also reduces debugging steps.

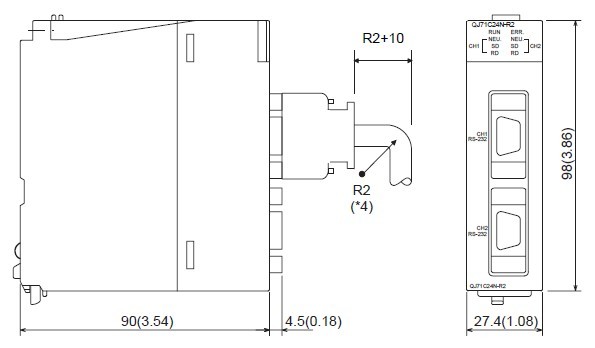

Diagrams
