Product Summary

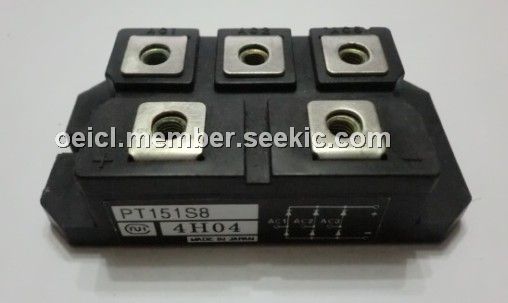

The PT151S8 is a diode module. The application of it is Rectified For General Use.

Parametrics

PT151S8 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage:800V; (2)Non Repetitive Peak Reverse Voltage:1000V; (3)Average Rectified Output Current:150A; (4)Surge Forward Current:1200A; (5)I Squared:7200A2s; (6)Operating JunctionTemperature Range:-40℃ to +150℃; (7)Storage Temperature Range:-40℃ to +125℃; (8)Isoration Voltage:2500V.

Features

PT151S8 features: (1)Isolated Base ; (2)3 Phase Bridge Circuit ; (3)Designed Power Circuit Board ; (4)High Surge Capability ; (5)UL Recognized, File No. E187184.

Diagrams

PT151S8 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PT151S8
PT151S8
Other

Data Sheet
Negotiable
