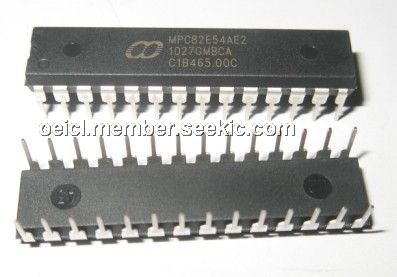

MPC82E54AE2

8-bit micro-controller, DIP28, Fully static operation, Excellent noise immunity, Power control

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.90~1.50

PartNumber:: MPC82E54AE2

Brand:: Meder Electronic - Meder | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. LIN HAIBIN's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-15

From Other Seller

Part Number:MPC82E54AE2
US $0.90 - 1.50
STEINBACH AND VOLLMANN0.87.0082.0LATCH, COMPRESSION, SHORT VERSION

US $20.19 - 18.27 / Piece
(0) Remove
ENTRELEC UK023100007MARKER, BLANK, 5X10MM, 100PK

US $3.70 - 3.08 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MPC82E54AE2 is a single-chip 8-bit micro-controller with instruction sets fully compatible with industrial-standard 80C51 series microcontroller. There is an excellent MCU kernel built in the MPC82E54AE2 compared to general 80C51 MCUs those take twelve oscillating cycles to finish an instruction, and this unique device could take only one oscillating cycle to finish one instruction. The MPC82E54AE2 is really the most efficient MCU adapted for simple control, such as: electronic scales, remote controller, security encoder/decoder, and user interface controller.

Parametrics

MPC82E54AE2 absolute maximum ratings: (1)Ambient temperature under bias:-55℃ to +125℃; (2)Storage temperature:-65℃ to +150℃ ; (3)Voltage on any Port I/O Pin or RST with respect to Ground:-0.5V to VCC + 0.5V ; (4)Voltage on VCC with respect to Ground:-0.5V to +6.0V ; (5)Maximum total current through VCC and Ground:400mA ; (6)Maximum output current sunk by any Port pin:40mA.

Features

MPC82E54AE2 features: (1)Enhanced 80C51 Central Processing Unit ; (2)15.5K bytes on-chip flash memory with ISP/IAP capability ; (3)256 bytes scratch-pad RAM and 256 bytes auxiliary RAM ; (4)Two-level code protection for flash memory access ; (5)Two 16-bits timer/counter ; (6)7 sources, 4-level-priority interrupt capability ; (7)One enhanced UART with automatic address recognition and frame error detection ; (8)15 bits Watch-Dog-Timer with 8-bit pre-scalar, one-time enabled SPI Master/Slave mode ; (9)Programmable Counter Array (PCA) ; (10)10-bit Analog-to-Digital Converter (ADC) ; (11)Power control: Idle mode and Power-Down mode, Power-down can be woken-up through INT0 and INT1 ; (12)27 programmable I/O ports ; (13)Alternative built-in 6MHz oscillator; (14)Fully static operation ; (15)Excellent noise immunity.
