Product Summary

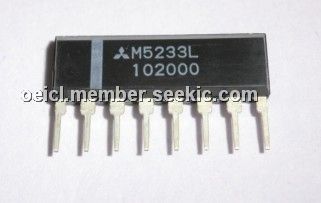

The M5233L is a dual comparator. It is designed to operate over a wide supply voltage range from 2 to 36V from a single power supply, with two circuits in each 8-pin SIP and 8-pin DIP and 8-pin mini flat package. The M5233L fits to a general-purpose comparator for a variety of electronic equipment. The applications of it are voltage comparator, window comparator, CR timer, time delay circuit, oscillator, etc.
Parametrics
M5233L absolute maximum ratings: (1)supply voltage:36V; (2)differential input voltage:36V; (3)common mode input voltage range:-0.3V to +36V; (4)power dissipation:800mW, 625mW, 440mW; (5)operating temperature:-20℃ to +75℃; (6)storage temperature:-55℃ to +125℃.
Features
M5233L features: (1)wide operating supply voltage range:2V to 36V; (2)dual power supplies:±1V to ±18V; (3)low circuit current:0.6mA(typ.); (4)wide common mode input voltage range:0V to VCC-1.5V; (5)open collector output; (6)output sink current:25mA; (7)response time:1.3usec; (8)pin compatible with general-purpose comparators 393,2930.
Diagrams
 |
