LQ104V1DG52

LQ104V1DG52, color active matrix LCD module, 6V, Sharp Electrionic Components

Rated 5 Rating 5 | reviews | Write a review

Price:: US $48.00~60.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $48.00~60.00

PartNumber:: LQ104V1DG52

Brand:: Sharp Electrionic Components - Sharp | Pack: DIP | D/C: 00+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. LIN HAIBIN's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-30

From Other Seller

Part Number:LQ104V1DG52
US $48.00 - 60.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
SIREN

US $22.52 - 30.97 / Piece
(0) Remove
Quantity:

piece

Product Summary

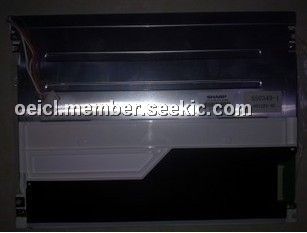

The LQ104V1DG52 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). The LQ104V1DG52 is composed of a color TFT-LCD panel, driver ICs, control circuit and power supply circuit and a backlight unit. Graphics and texts can be displayed on a 640×3×480 dots panel with 262,144 colors by supplying 18 bit data signal (6bit/color), four timing signals, +3.3V/+5V DC supply voltage for TFT-LCD panel driving and supply voltage for backlight. The TFT-LCD panel used for this module is a low-reflection and higher-color-saturation type. Therefore, this module is also suitable for the multimedia use.

Parametrics

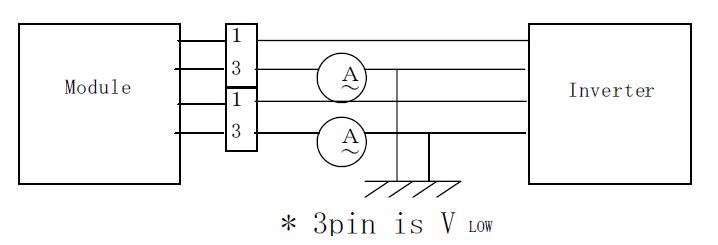

LQ104V1DG52 absolute maximum ratings: (1)Lamp current, IL: 3.5 to 7.0 mArms; (2)Lamp power consumption, PL: 2.8W; (3)Lamp frequency, FL: 40 to 70 KHz; (4)Kick-off voltage, Vs: 1000 Vrms; 1300 Vrms; (5)Lamp life time, LL: 50000 hour; LL: 30000 hour.

Features

LQ104V1DG52 features: (1)Display size: 26 (10.4") Diagonal cm; (2)Active area: 211.2(H)×158.4(V) mm; (3)Pixel format: 640(H)×480(V) pixel(1 pixel＝R+G+B dots); (4)Pixel pitch: 0.330(H)×0.330(V) mm; (5)Pixel configuration: R,G,B vertical stripe; (6)Display mode: Normally white; (7)Unit outline dimensions: 246.5(W)×179.4(H)×14.2(D) mm; (8)Mass: 600±20 g.
