Product Summary

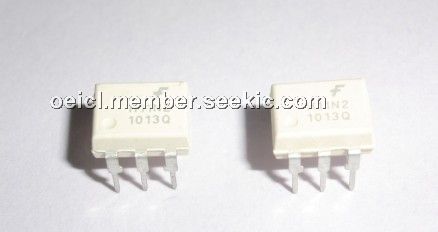

The H11N2 is a high speed logic optocoupler. It has a high speed integrated circuit detector optically coupled to an AlGaAs infrared emitting diode. The H11N2 is optimized for simplicity of operation and utilizes an open collector output for maximum application flexibility. The applications of the H11N2 are Logic to logic isolator, Programmable current level sensor, Line receiver-eliminate noise and transient problems, A.C. to TTL conversion-square wave shaping, Interfaces computers with peripherals, Isolated power MOS driver for power supplies.
Parametrics
H11N2 absolute maximum ratings: (1)Storage Temperature:-55℃ to +150℃; (2)Operating Temperature:-40℃ to +85℃; (3)Lead Solder Temperature:260℃ for 10 sec; (4)Continuous Forward Current:30mA; (5)Reverse Voltage:6V; (6)Forward Current - Peak (1 μs pulse, 300 pps):1.0A; (7)V45 Allowed Range:0V to 16V; (8)V65 Allowed Range:0V to 16V; (9)I4 Output Current:50mA.
Features
H11N2 features: (1)High data rate, 5 MHz typical (NRZ); (2)Free from latch up and oscilliation throughout voltage and temperature ranges; (3)Microprocessor compatible drive; (4)Logic compatible output sinks 16 mA at 0.5 V maximum; (5)Guaranteed on/off threshold hysteresis; (6)Wide supply voltage capability, compatible with all popular logic systems; (7)High common mode transient immunity, 2000 V/μs minimum; (8)Fast switching tr = 7.5ns typical, tf = 12ns typical; (9)Underwriter Laboratory (UL) recognized-file #E90700; (10)VDE recognized – File#102497 – Add option V (e.g., H11N1VM).

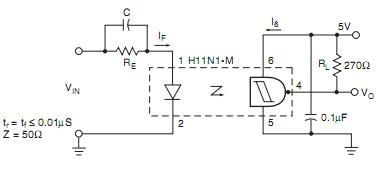

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 H11N2W |
Fairchild Semiconductor |
High Speed Optocouplers |
Data Sheet |
Negotiable |
|
||||||||||||
 |
H11N2TM |
Fairchild Semiconductor |
High Speed Optocouplers Optocoupler LC Schmitt Trigger |
Data Sheet |
Negotiable |
|
||||||||||||
|
H11N2VM |
Fairchild Semiconductor |
High Speed Optocouplers Optocoupler LC Schmitt Trigger |
Data Sheet |
|
|
||||||||||||
|
H11N2TVM |
Fairchild Semiconductor |
High Speed Optocouplers Optocoupler LC Schmitt Trigger |
Data Sheet |
|
|
||||||||||||
|
H11N2SVM |
Fairchild Semiconductor |
High Speed Optocouplers Optocoupler LC Schmitt Trigger |
Data Sheet |
|
|
||||||||||||
|
H11N2SR2VM |
Fairchild Semiconductor |
High Speed Optocouplers Optocoupler LC Schmitt Trigger |
Data Sheet |
|
|
||||||||||||
|
H11N2SR2M |
Fairchild Semiconductor |
High Speed Optocouplers Optocoupler LC Schmitt Trigger |
Data Sheet |
|
|
||||||||||||
|
H11N2SM |
Fairchild Semiconductor |
High Speed Optocouplers Optocoupler LC Schmitt Trigger |
Data Sheet |
|
|
||||||||||||
