Product Summary

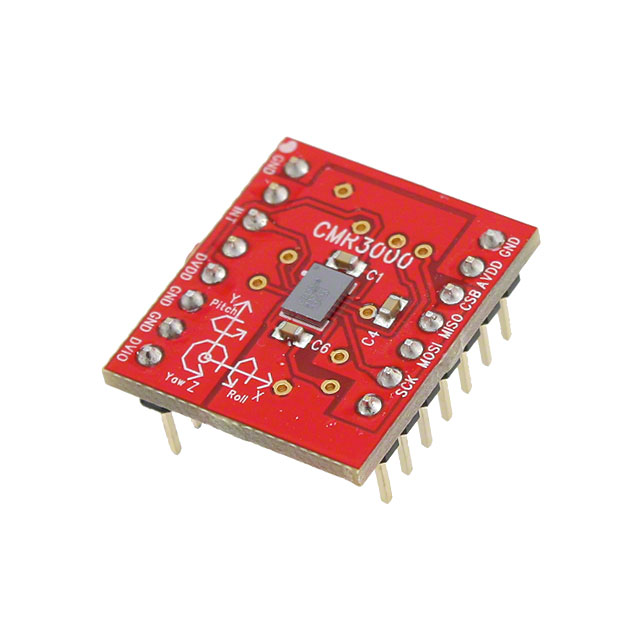

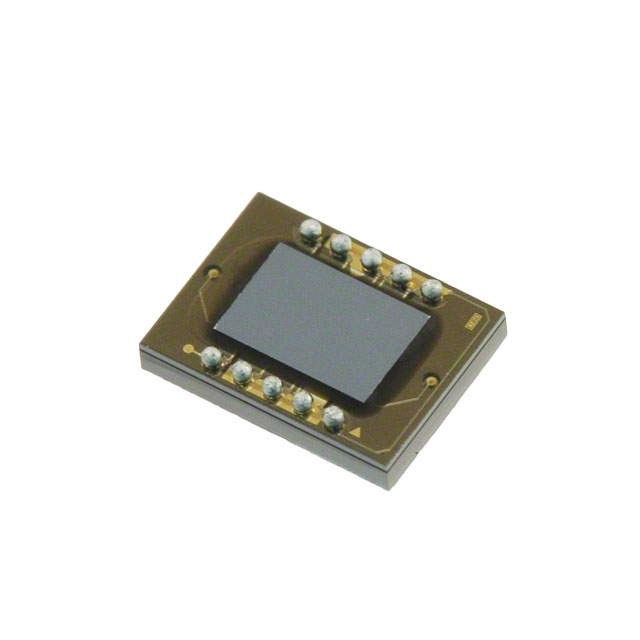

The CMR3000-D1 is a 3-axis Low Power Gyro for Consumer Electronics. The applications of the CMR3000-D1 include Gaming input devices, Computer peripherals and remote controllers, Mobile phones.

Parametrics

CMR3000-D1 absolute maximum ratings: (1)Vdd: 2.5 to 3.0 V; (2)Digital I/O Vdd, Vdd ≥ Digital I/O Vdd: 1.6 to 3.0V; (3)Operating temperature: -40 to +85℃; (4)Operating temperature: 5mA.

Features

CMR3000-D1 features: (1)2.5 V?.6 V supply voltage; (2)1.6 V?.6 V digital I/O voltage; (3)Low 5 mA current consumption; (4)±2000°/s measurement range; (5)20 Hz and 80 Hz user selectable bandwidths; (6)SPI and I2C digital interface; (7)Size 3.1x4.1x0.83 mm3; (8)Proven capacitive 3D-MEMS technology; (9)High shock durability; (10)RoHS compliant/lead free soldering.

Diagrams

CMR3000-D1 circuit diagram
