Product Summary

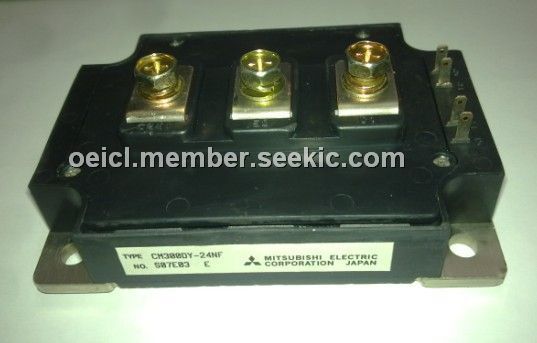

The CM300DY-24NF is a high power switching use. The applications of it are General purpose inverters & Servo controls, etc.
Parametrics
CM300DY-24NF absolute maximum ratings: (1)Collector-emitter voltage:1200V; (2)Gate-emitter voltage:±20V; (3)Maximum collector dissipation:1130W; (4)Junction temperature:-40℃ to +150℃; (5)Storage temperature:-40℃ to +125℃; (6)Isolation voltage:2500Vrms; (7)Collector current:300A or 600A; (8)Emitter current:300A or 600A.
Features
CM300DY-24NF features: (1)IC:300A; (2)VCES:1200V; (3)Insulated Type; (4)2-elements in a pack.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM300DY-24NF |
|
IGBT MOD DUAL 1200V 300A NF SER |
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
CM3002 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
CM300DU-12F |
|
IGBT MOD DUAL 600V 300A F SER |
Data Sheet |
|
|
||||||
|
CM300DU-12H |
|
IGBT MOD DUAL 600V 300A U SER |
Data Sheet |
|
|
||||||
|
CM300DU-12NFH |
|
IGBT MOD DUAL 600V 300A NFH SER |
Data Sheet |
|
|
||||||
|
CM300DU-24F |
|
IGBT MOD DUAL 1200V 300A F SER |
Data Sheet |
|
|
||||||
|
CM300DU-24H |
|
IGBT MOD DUAL 1200V 300A U SER |
Data Sheet |
|
|
||||||
