Product Summary

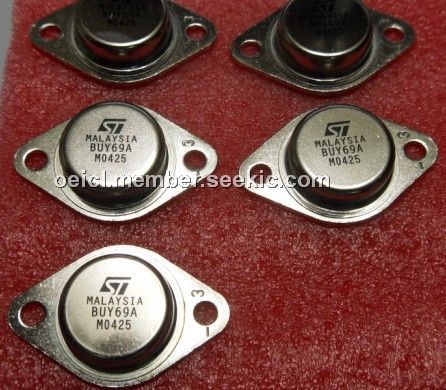

The BUY69A is a silicon Multi-Epitaxial mesa NPN transistor in Jedec TO-3 metal case. It is intended for horizontal deflection output stage of CTV receivers and high voltage, fast switching and industrial applications. The applications of the BUY69A are horizontal deflection for colour TV, switching regulators.
Parametrics
BUY69A absolute maximum ratings: (1)Collector-Emitter Voltage (VBE = 0):1000 V; (2)Collector-Emitter Voltage (IB = 0):400 V; (3)Emitter-Base Voltage (IC = 0):8 V; (4)Collector Current:10 A; (5)Collector Peak Current (tp ≤ 10 ms ):15 A; (6)Base Current:3 A; (7)Total Dissipation at Tc ≤ 25℃:100 W; (8)Storage Temperature:-65℃ to 200℃; (9)Max. Operating Junction Temperature:200℃.
Features
BUY69A features: (1)STM preferred salestype; (2)NPN transistor; (3)high voltage capability; (4)high current capability; (5)fast switching speed; (6)high power TO-3 package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BUY69A |
STMicroelectronics |
Transistors Bipolar (BJT) NPN High Voltage |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
BUY69A |
STMicroelectronics |
Transistors Bipolar (BJT) NPN High Voltage |
Data Sheet |
Negotiable |
|
||||
 |
BUY69B |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
BUY69C |
Other |
|
Data Sheet |
Negotiable |
|
||||
