Product Summary

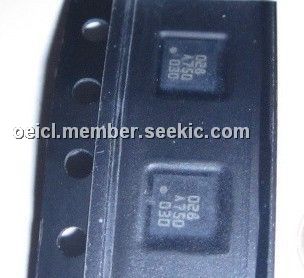

The BMA150 is a LGA packaged triaxial, programmable low-g acceleration sensor with digital output. Offering many smart functional features and operation across a wide temperature range, the BMA150 is aimed for consumer and industrial market applications. Providing measurement of acceleration across 3 perpendicular axes, the dedicated motion sensing circuitry in the BMA150 enables power efficient interrupt driven software. The differential capacitance principle implemented in Bosch Sensortec’s accelerometers provides a robust and lowest power sensing solution to the market. The applications of the BMA150 include Advanced power management for mobile devices, HDD protection, Drop detection for warranty logging, Menu scrolling, tip-tap function, Step-counting, Display profile switching (portrait/landscape), Detection and Gaming.
Parametrics
BMA150 absolute maximum ratings: (1)Supply Voltage: -0.3 to 4.25 V; (2)Storage Temperature range: -50 to +150℃; (3)EEPROM write cycles: 1000 cycles; (4)EEPROM retention: 10 years; (5)ESD: 500 V.
Features
BMA150 features: (1)Switchable g-range and bandwidth; (2)Low-power consumption; (3)SPI (3-wire/4-wire) and I2C interfaces; (4)Programmable interrupt feature for mobile wake-up or free-fall detection; (5)Ultra-low-power self-wake-up mode; (6)Self-test capability; (7)LGA package (3 mm × 3 mm × 0.9 mm).

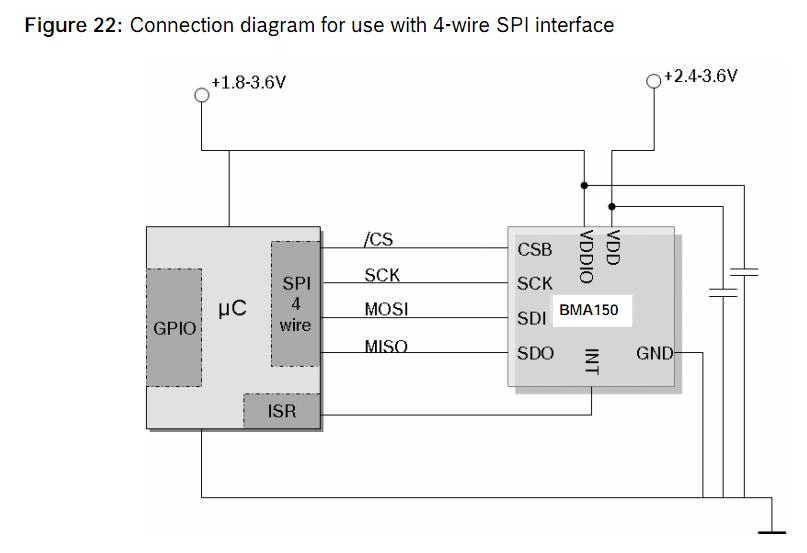

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() BMA150 |
![]() |
![]() 3-AXIS ACCELEROMETER DIGITAL I/F |
![]() Data Sheet |
![]()
|
|
|||||||||
![]() BMA150-SHUTL |
![]() |
![]() BMA150 SHUTTLE BOARD FOR DEV KIT |
![]() Data Sheet |
![]()
|
|
|||||||||
![]() BMA150-TRIBOX |
![]() |
![]() BMA150 TRIBOX DEMO BOARD W/USB |
![]() Data Sheet |
![]() Negotiable |
|
