Product Summary

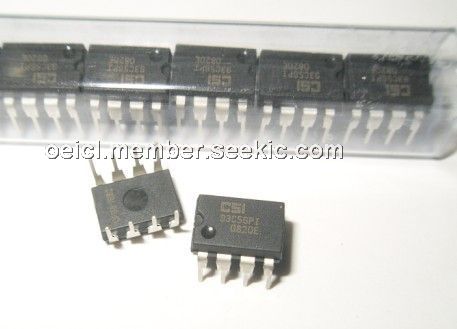

The 93C56PI is a Microwire Serial E2PROM memory device which is configured as either registers of 16 bits(ORG pin at VCC) or 8 bits(ORG pin at GND). Each register can be written (or read) serially by using the DI (or DO) pin. The 93C56PI is manufactured using Catalyst’s advanced CMOS E2PROM floating gate technology. The 93C56PI is designed to endure 1,000,000 program/erase cycles and has a data retention of 100 years. The device is available in 8-pin DIP, 8-pin SOIC or 8-pin TSSOP packages.
Parametrics
93C56PI absolute maximum ratings: (1)Temperature Under Bias:–55℃ to +125℃; (2)Storage Temperature:–65℃ to +150℃; (3)Voltage on any Pin with Respect to Ground:–2.0V to +VCC +2.0V; (4)VCC with Respect to Ground:–2.0V to +7.0V; (5)Package Power Dissipation Capability (Ta = 25℃):1.0W; (6)Lead Soldering Temperature (10 secs):300℃; (7)Output Short Circuit Current:100 mA.
Features
93C56PI features: (1)Low Power CMOS Technology; (2)1.8 to 6.0 Volt Operation; (3)Selectable x8 or x16 Memory Organization; (4)Self-Timed Write Cycle with Auto-Clear; (5)Hardware and Software Write Protection; (6)Power-Up Inadvertant Write Protection; (7)1,000,000 Program/Erase Cycles; (8)100 Year Data Retention; (9)Commercial, Industrial and Automotive Temperature Ranges.
Diagrams
 |
