Product Summary

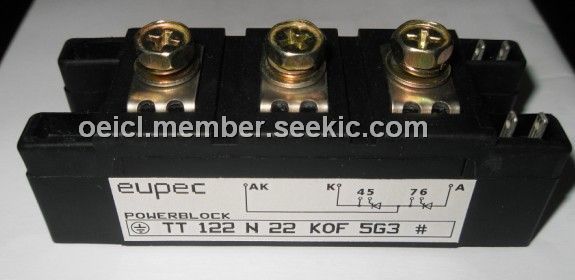

The TT122N22KOF is a Phase Control Thyristor Module.

Parametrics

TT122N22KOF absolute maximum ratings: (1)repetitive peak forward off-state and reverse voltages:2200V; (2)non-repetitive peak forward off-state voltage:2200V; (3)non-repetitive peak reverse voltage:2300V; (4)maximum RMS on-state current:220A; (5)average on-state current:140A; (6)surge current:2950A; (7)I2t-value:43500A2s; (8)critical rate of rise of on-state current:100A/μs; (9)critical rate of rise of off-state voltage:1000V/μs.

Features

TT122N22KOF features: (1)on-state voltage:max.1.95V; (2)threshold voltage:1.00V; (3)slope resistance:2.15mΩ; (4)gate trigger current:max.200mA; (5)gate trigger voltage:max.2V; (6)gate non-trigger current:max.5mA; (7)gate non-trigger voltage:max.0.25V; (8)holding current:max.300mA; (9)latching current:max.1200mA; (10)forward off-state and reverse current:max.30mA; (11)gate controlled delay time:max.4μs.

Diagrams

TT122N22KOF test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TT122N22KOF
TT122N22KOF
Infineon Technologies
Discrete Semiconductor Modules 2200V 220A DUAL
Data Sheet
0-1: $93.41
1-10: $84.07
